ASTM A216 WCB Check Valve, 48 IN, CL 300 LB, API 6D, API 594

Key Specifications / Features

Model no. : 1842059

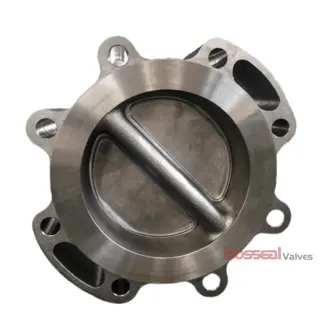

As a leading supplier of API 6D dual plate check valves from China, Bosseal offers 48-inch, Class 300 LB non-return valves made from ASTM A216 WCB, compliant with API 594 standards. These spring-loaded valves are available with wafer or flanged ends. The dual plate valve features a one-piece design without holes through the body, eliminating external pins to retain the disc/stem, and ensuring no external leakage points. This makes it an excellent choice for critical service applications.

Detail Information

API 6D Dual Plate Check Valve, Non-Return Valve, 48 Inch, Class 300 LB, A216 WCB, Wafer/Lug/Flanged.

Check Valve Specification

1842059 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 48 Inch
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A352 LCB, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Optional Soft and Metal Seat, Independent Spring, Unique Slim Plate Design.

Product Line

Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
End Connection: Wafer, Lug, Flanged-RF, RTJ
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request).

End Connections

Flanged End

Lug End

Wafer End
