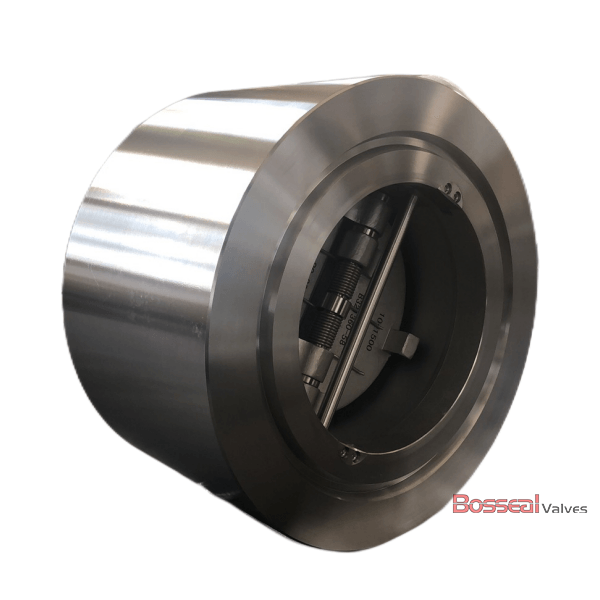

ASTM A216 WCB Check Valve, 24 Inch, 900 LB, API 594, 6D

Key Specifications / Features

Model no. : 1842083

We are a leading supplier of API 6D dual check valves, offering premium products in a 24-inch (DN600) size. Constructed from durable ASTM A216 WCB, our valves are rated for Class 900 LB and meet API 594 standards. Featuring a compact design, these valves are available with wafer and flanged end configurations to accommodate various installation needs. The spring-loaded mechanism ensures reliable operation and quick response, enhancing performance and longevity. Ideal for high-pressure applications, our dual check valves combine robust construction with efficient design, providing dependable service in demanding environments.

Detail Information

24 Inch Dual Plate Check Valve, API 6D, ASTM A216 WCB, DN600, Class 900 LB, Wafer, Flanged Ends, Compact Design.

Valve Description

1842083 Dual Plate Check Valve
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Nominal Size: 24 Inch, DN600
Nominal Class: Class 900 LB
Body Material: ASTM A216 WCB, ASTM B148 C95800, ASTM A352 LCB, Titanium Alloy, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM B148 C95800, ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, 5A, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598

Product Line

Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 2500 LB
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
Seat Type: Soft Seat, Metal Seat
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
