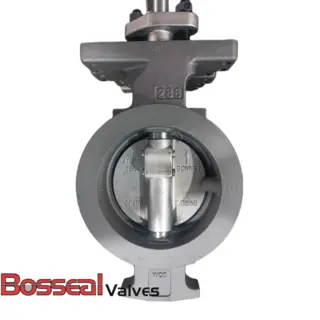

ASTM A216 WCB Butterfly Valve, RPTFE Seat, 3 IN, CL 150 LB

Key Specifications / Features

Model no. : 1862119

As a manufacturer of RPTFE seated butterfly valves, we offer high-quality solutions that meet EN 593 and API 609 Category B standards. Our 3-inch, 150 LB valves feature a double-offset design and are constructed with an ASTM A216 WCB carbon steel body for enhanced durability. Equipped with a 17-4PH stem and RPTFE seat, these valves ensure reliable sealing and long-lasting performance in demanding industrial applications. The double flanged design provides added stability and ease of installation, making our valves an ideal choice for various industries.

Detail Information

High-Performance Butterfly Valve, 3 Inch/DN80, 150 LB, Soft Seat, Lever Operation.

Valve Description

1862119 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 3 Inch, DN80
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Lever
Body Material: ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A351 CF8, Titanium.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
