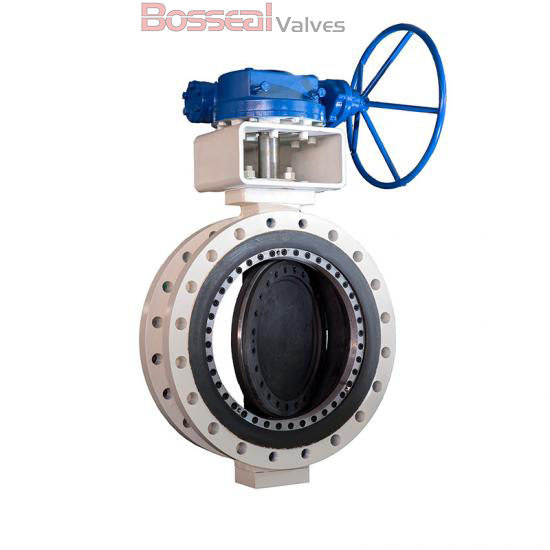

ASTM A216 WCB Butterfly Valve, CL 150, 30 IN, Soft Seated

Key Specifications / Features

Model no. : 1862300

As a leading supplier of double-offset butterfly valves, we provide a robust 30-inch model that meets API 609 Category B standards. Constructed from carbon steel A216 WCB and featuring a Monel K500 stem, this valve is rated at 150 LB and designed with wafer ends. It offers a long working life with millions of cycles, low torque operation, and a replaceable seat for tight sealing. Known for its excellent control characteristics and bi-directional sealing under full pressure, it also offers an optional fire-safe seat for added safety.

Detail Information

API 609 Category B Butterfly Valve, Wafer End, 30 Inch, 150 LB, Double Eccentric.

Valve Description

1862300 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Nominal Size: 30 Inch, DN750
Nominal Class: Class 300 LB, PN50
Structure: Double Offset, Double Eccentric
Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM B148 C95800, Titanium, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Seat: RPTFE, PPL
End Connection: Wafer
Operation: Gear
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 IN - 48 IN (DN15 - DN1200)
Pressure Range: CL 150  - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe Design.
