ASTM A216 WC6 Pressure Seal Gate Valve, API 600, 3IN, CL1500

Name: ASTM A216 WC6 Pressure Seal Gate Valve, API 600, 3IN, CL1500
SKU: 3gps15bwc605
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 3GPS15BWC605

Buy high-quality Pressure Seal Gate Valve from a leading manufacturer. Our valve is made of ASTM A216 WC6 and features a size of 3 inches (DN80). It has a Class 1500 LB rating and a PN250 designation, meeting API 600 standards. The valve is designed with an OS & Y configuration, a standard bore, and a BW end. Additionally, it comes with a renewable seat for easy maintenance. Trust us for reliable and durable gate valves that meet industry standards.

Request a quote

Tags:

ASTM A217 WC6 Gate Valve

Pressure Seal Bonnet Gate Valve

API 600 Gate Valve

Detail Information

3 inch Class 1500 Pressure Seal Gate Valve, API 600, OS & Y, Butt Weld, ASTM A217 WC6 Body, 1Cr13+STL.6 Trim, Handwheel

Valve Description:
1821020 Gate Valve 3GPS15BWC605
Design Standard: API 600
Structure: Pressure Seal Bonnet
Nominal size: 3 Inch
Nominal class: 1500 LB
Bore Type: Standard Bore
End Connection: BW
Operation: Handwheel
Body Material: ASTM A216 WC6
Trim Material: 1Cr13+STL, No.5
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS& Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat

Product Range:
Body material: Carbon Steel, Stainless Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +550℃
Operation: Handwheel, Gear, Motor Actuator

Next: ASTM A352 LCC Pressure Seal Gate Valve, 4 IN,2500 LB,API 600

Previous: ASTM A216 WCB Wedge Gate Valve, API 600, 24 Inch, 150 LB, RF

Similar Products

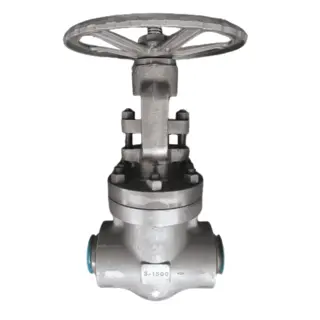

ASTM A182 F22 Wedge Gate Valve, 3 Inch, 1500 LB, API 600, BW

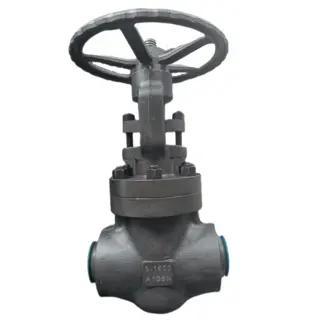

Bolted Bonnet Forged Gate Valve, API 600, A105, 3IN, 1500LB
