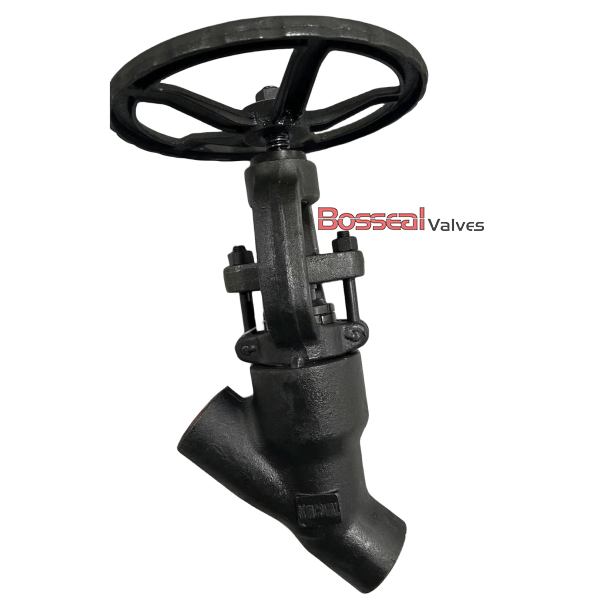

ASTM A182 F91 Y Type Globe Valve, 1-1/2 IN, CL 2680, API 602

Name: ASTM A182 F91 Y Type Globe Valve, 1-1/2 IN, CL 2680, API 602
SKU: 1852058
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1852058

We are a leading fabricator of API 602 Y-Type Globe Valves in China, specializing in high-quality valves crafted from ASTM A182 F91 material. Our 1-1/2 inch valve is built to meet Class 2680 LB and ASME B16.34 standards, ensuring exceptional durability and performance. The bonnetless design reduces maintenance needs, while the reduced bore feature optimizes flow control and minimizes pressure drop. Equipped with socket weld (SW) ends and an OS&Y (Outside Screw & Yoke) configuration, this valve offers precise regulation and reliable operation. The rising stem mechanism enhances ease of use and adjustment. Ideal for high-pressure and high-temperature environments, our Y-Type Globe Valve combines advanced design with robust construction to deliver superior efficiency and long-term reliability.

Request a quote

Tags:

ASTM A182 F91 Globe Valve

1-1/2 Inch Globe Valve

Bonnetless Globe Valve

Detail Information

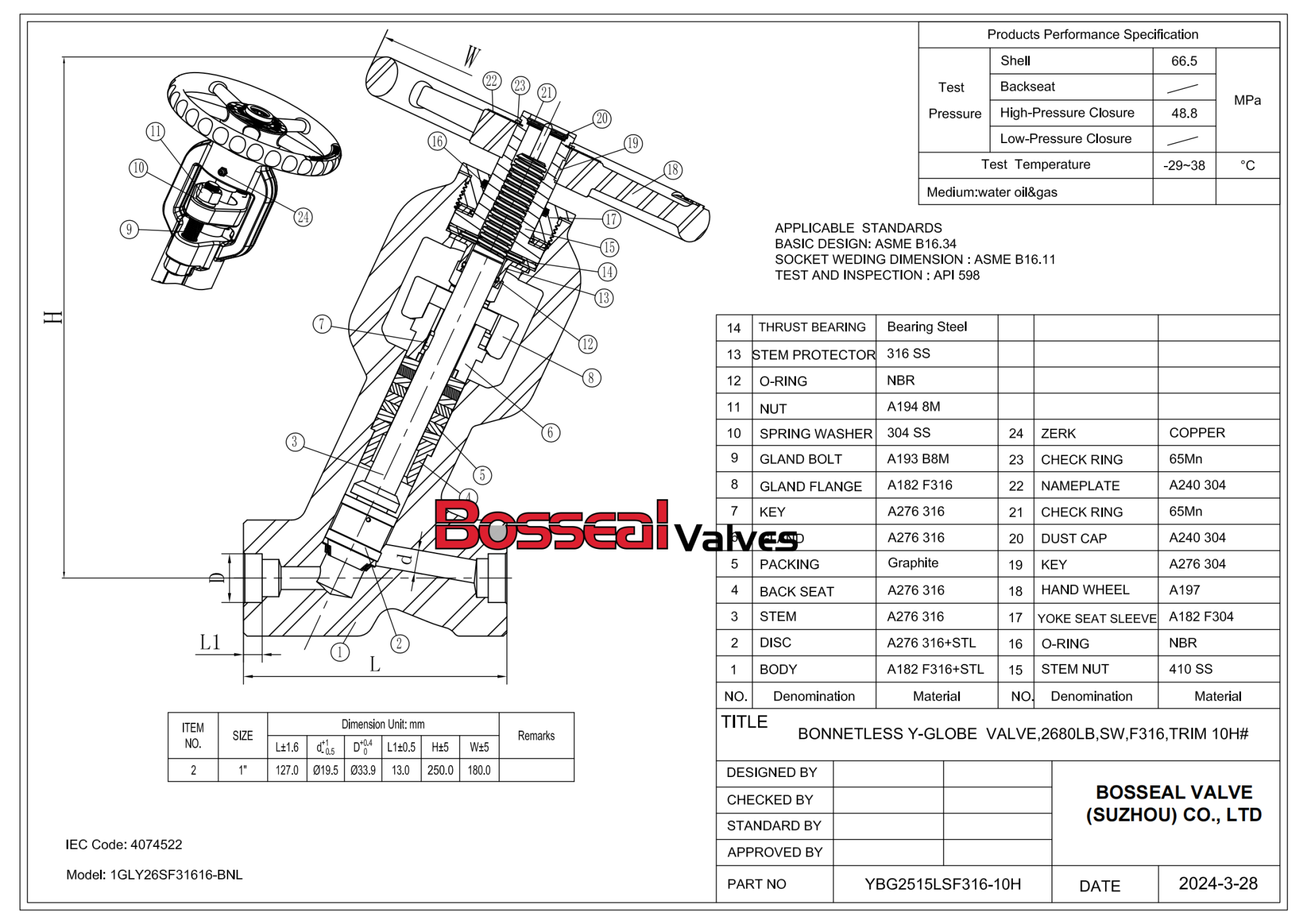

API 602 Y Type Globe Valve, 1-1/2 Inch/DN40, CL 2680 LB, ASTM A182 F91 Body, Bonnetless, SW Ends.

Valve Description:

1852058 Globe Valve
Design Standard: API 602, ASME B16.34
Structure: Bonnetless, Welded Bonnet, Bolted Bonnet, Pressure Seal Bonnet
Nominal Size: 1-1/2 Inch, DN40
Nominal Class: Class 2680 LB
Body Material: ASTM A182 F91, ASTM A182 F11, ASTM A182 F316, ASTM A105N, ASTM A182 F22
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Test and Inspection: API 598
Bore Type: Reduced
Face to Face: MFG'S
Operation: Handwheel
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)

Key Features:

Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service

Benefits:

1. Reduced Pressure Drop: Angled flow path minimizes resistance, enhancing fluid handling efficiency.
2. Less Turbulence: Design reduces turbulence, improving system performance.
3. Improved Flow Control: Accurate regulation for high-pressure and high-temperature applications.
4. Space-Efficient: Compact Y design fits well in confined spaces.

Product Portfolio:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 2 Inch (DN15-DN50)
Pressure Range: Class 800 - 4500 LB
Working Temperature: -29°C to +525°C
Operation: Manual or Actuated
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)

Next: ASTM A105N Y Globe Valves, 2680 LB, 2 Inch, Bolted Bonnet

Previous: ASTM A216 WCB Bolted Bonnet Globe Valve, 8 Inch, 600 LB, RF

Similar Products

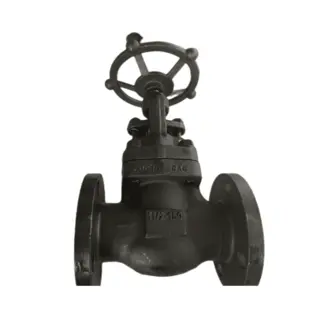

Bolted Bonnet Forged Globe Valve, 1-1/2 Inch, 150 LB, RF
