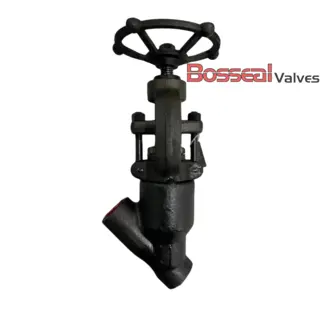

ASTM A182 F91 Y Globe Valve, 800 LB, 2 Inch, Bolted Bonnet

Key Specifications / Features

Model no. : 1852039

We are a premier provider of 2-inch Y globe valves from China, featuring ASTM A182 F91 stainless steel construction. Our valves are Class 800 LB and meet ASME B16.34 and API 602 standards, ensuring superior quality and performance. Designed with a bolted bonnet for easy maintenance and secure sealing, they also include socket weld ends for reliable, leak-proof connections. With a DN50 size, these valves are ideal for high-pressure applications requiring durability and precision. Trust our expertise for robust, high-performance valves tailored to meet your industrial requirements.

Detail Information

ASME B16.34 Y Globe Valve, 2 Inch, Class 800 LB, Bolted Bonnet, ASTM A182 F91 Body, SW End.

Valve Description:
1852039 Globe Valve
Design Standard: ASME B16.34, API 602
Structure: Bolted Bonnet, Bonnetless, Welded Bonnet, Pressure Seal Bonnet
Nominal Size: 2 Inch
Nominal Class: Class 800 LB
Bore Type: Reduced
Face to Face: MFG'S
Operation: Handwheel
Body Material: ASTM A182 F91, ASTM A182 F316, ASTM A182 F11, ASTM A105N, ASTM A182 F22
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Test and Inspection: API 598
End Connection: BW, SW, NPT


Key Features:
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service


Product Portfolio
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15-DN50)
Pressure Range: Class 800 LB - 4500 LB
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)
Operation: Manual or Actuated
Working Temperature: -29°C to +525°C

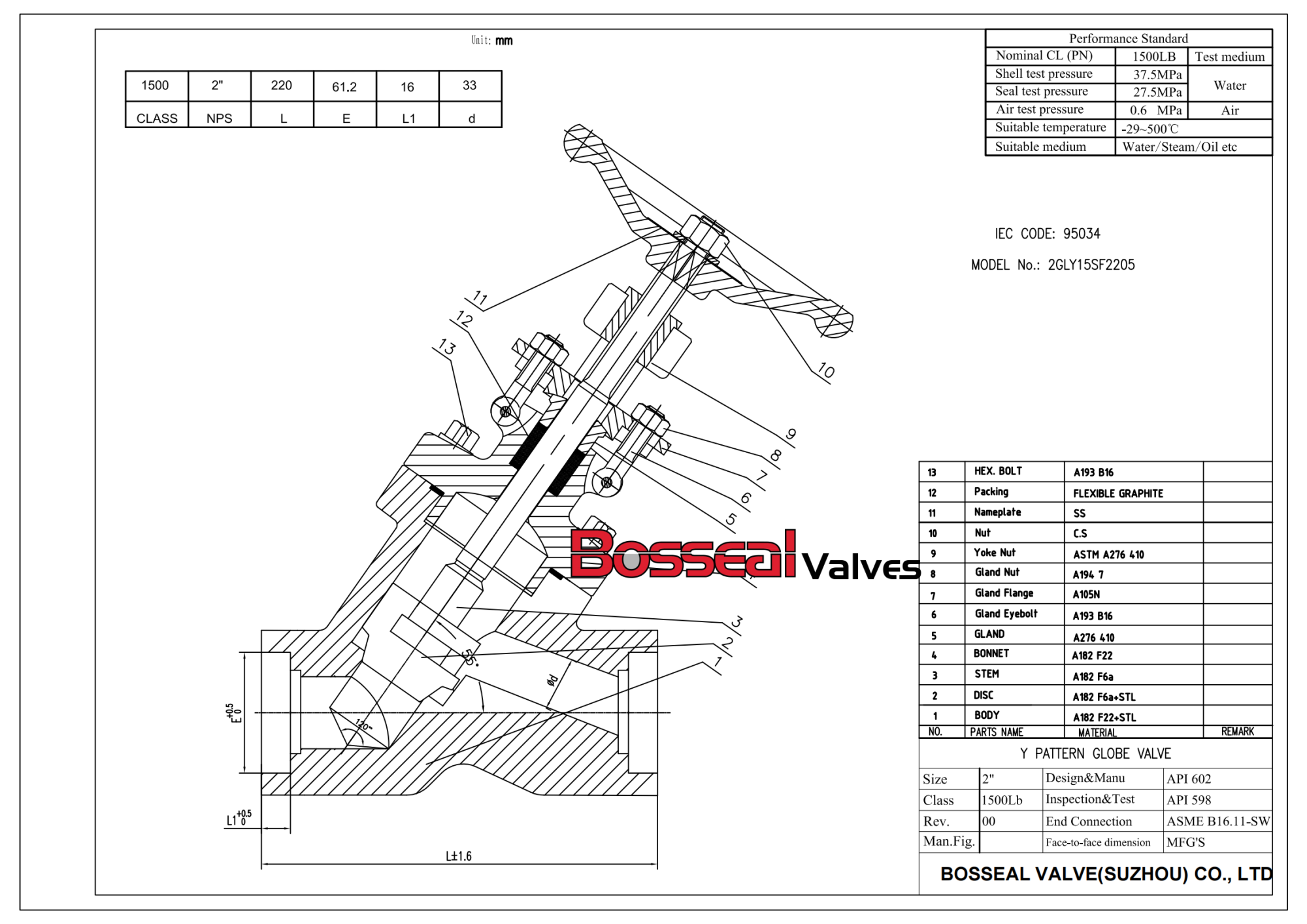

Drawing for Globe Valve
