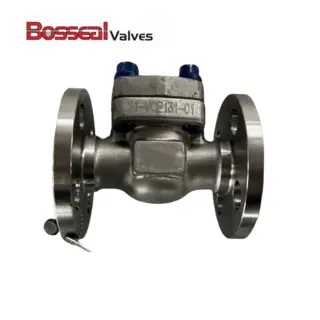

ASTM A182 F51 Swing Check Valve, API 602, 2 Inch, 1500 LB

Detail Information

Duplex Steel F51 Integral Flange Forged Swing Check Valve, API 602, 2 INCH, 1500 LB, RTJ, ASTM A182 F51 Body & Trim

Valve Description:
API 602 Forged Swing Check Valve
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet
Nominal size: 2 Inch, DN50
Nominal class: 1500 LB, PN250
Bore: Regular Bore
End Connection: RTJ-Flanged
Operation: /
Body Material: ASTM A182 F51
Trim Material: ASTM A182 F51
Face to face: ASME B16.10
Test and inspection: API 598
Key Features:  Fully guided solid disc

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ
Working temperature: -29℃ - +400℃
Operation: /

Forged Swing Check Valve Tech Drawing
