ASTM A182 F316 Piston Check Valve, 1 Inch, 800 LB, API 602

Key Specifications / Features

Model no. : 1P8SF31612

Manufactured according to ASTM A182 F316 standards, this 1-inch 800 LB piston check valve meets API 602 and ASME B16.34 specifications. Featuring ASTM A182 F316+STL Trim 12 and a bolted bonnet design, it offers versatility with options for SW or NPT connections.


Detail Information

API 602 Piston Check Valve, 1 INCH, 800 LB, SW/NPT, F316 Body, Trim 12

Valve Description:
1853010 API 602 Forged Piston Check Valve 1P8SF31612
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet
Nominal size: 1 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: SW or NPT
Operation: /
Body Material: ASTM A182 F316
Trim Material: F316+STL, No.12
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Fully guided solid disc, Piston Type (Swing type available), Low breaking pressure

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: /




Nickname*:
E-mail*:
Rate*:
Comments*:

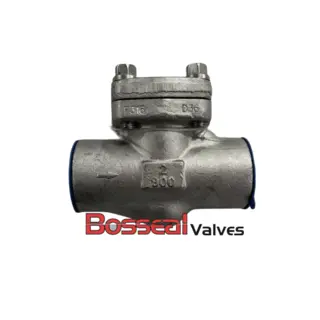

Next: API 602 Piston Check Valve, 2 IN, CL 800 LB, ASTM A182 F316

Previous: ASTM A105N Forged Globe Valve, API 602, 1 Inch, 800 LB, SW

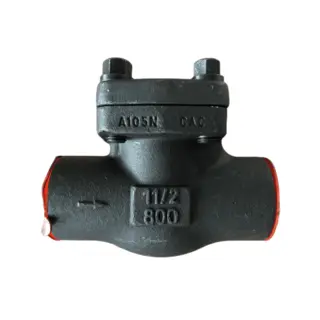

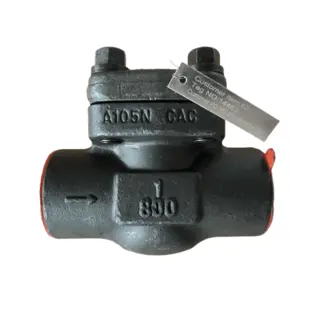

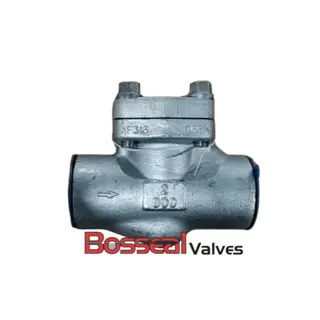

Similar Products
