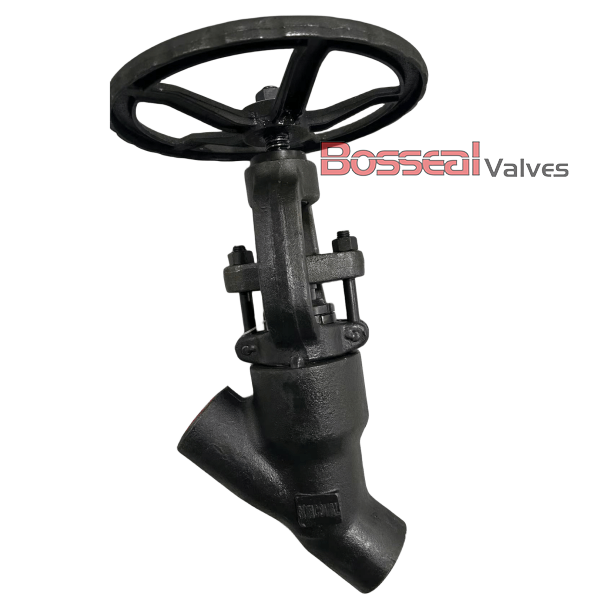

ASTM A182 F11 Y Type Globe Valve, 1-1/2 IN, CL 1690, API 602

Key Specifications / Features

Model no. : 1852048

As a leading fabricator of API 602 Y Type Globe Valves in China, we specialize in producing high-quality valves that meet stringent industry standards, including ASTM A182 F11 and ASME B16.34. This 1-1/2 inch valve, rated for Class 1690 LB pressure, is designed to deliver exceptional performance in demanding environments. The bonnetless design ensures a compact and lightweight solution, while the reduced bore feature optimizes flow control and minimizes pressure drop. Equipped with an Outside Screw and Yoke (OS&Y) mechanism, the valve allows for precise and reliable operation. It also features Socket Weld (SW) ends for secure and durable connections. Ideal for applications requiring high-pressure regulation and efficient fluid management, our Y Type Globe Valve combines durability with advanced engineering to meet the needs of various industrial systems.

Detail Information

API 602 Y Type Globe Valve, 1-1/2 Inch, CL 1690 LB, ASTM A182 F11 Body, Bonnetless, SW Ends.


Valve Description:

1852048 Globe Valve
Design Standard: API 602, ASME B16.34
Structure: Bonnetless, Welded Bonnet, Bolted Bonnet, Pressure Seal Bonnet
Nominal Size: 1-1/2 Inch
Nominal Class: Class 1690 LB
Bore Type: Reduced
Face to Face: MFG'S
Operation: Handwheel
Body Material: ASTM A182 F11, ASTM A182 F316, ASTM A105N, ASTM A182 F22, ASTM A182 F91
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Test and Inspection: API 598
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)

Key Features:

Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service


Benefits
1. Reduced Pressure Drop: The angled flow path minimizes the resistance to flow and reduces pressure drop, making it more efficient for fluid handling.
2. Less Turbulence: The design helps in reducing turbulence, which can improve the overall efficiency and performance of the system.
3. Improved Flow Control: Provides accurate control of fluid flow and is suitable for regulating the flow in high-pressure and high-temperature applications.
4. Space-Efficient: The Y design often requires less space compared to traditional globe valves, which can be advantageous in confined spaces.


Product Portfolio:

Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15-DN50)
Pressure Range: Class 800 LB - 4500 LB
Working Temperature: -29°C to +525°C
Operation: Manual or Actuated
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)
