ASTM A105N Trunnion Mounted Ball Valve, 20IN, 600 LB, API 6D

Key Specifications / Features

Model no. : 20BS6RA105

This is a 20-inch trunnion mounted ball valve with an API 6D rating and a 600 LB capacity. Its body is made from forged steel with an A105N material composition and features an RF connection type. This valve is ideal for a variety of industrial applications.

Detail Information

20 Inch Trunnion Mounted Ball Valve, API 6D, 600 LB, RF, Forged Steel, A105N Body

Valve Description:
1811007 Trunnion Mounted Ball Valve 20BS6RA105
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 20 Inch
Nominal class: 600 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F6A, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator

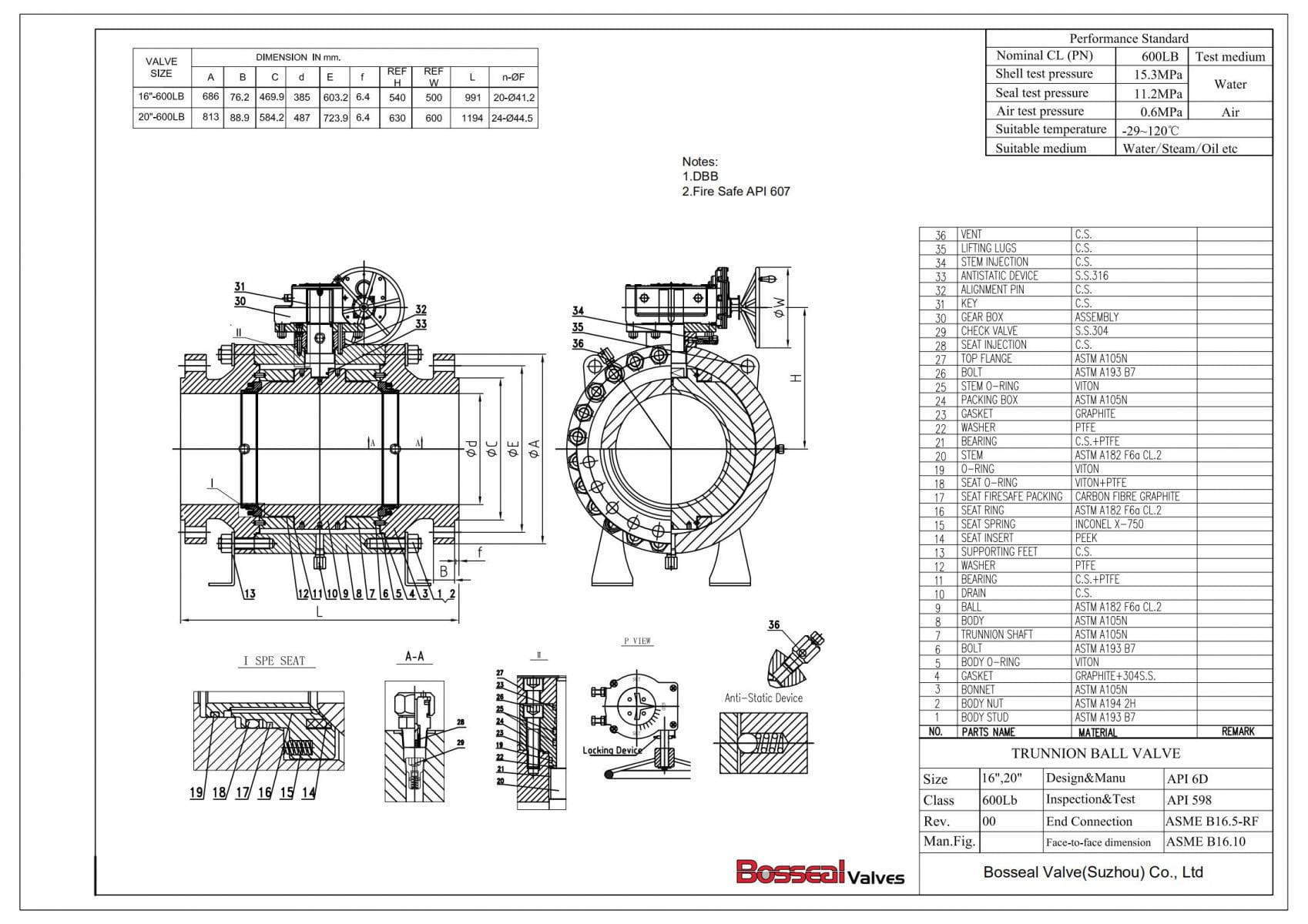

ASTM A105N Trunnion Ball Valve Tech Drawing
