ASTM A105N Gate Valve, API 602, 1/2 Inch, 800 LB, SW

Key Specifications / Features

Model no. : 0.5G8SA10508

This A105 Body Trim 8 Forged Gate Valve, API 602, 1/2 Inch, 800 LB, SW, Handwheel is a high-quality valve suitable for a range of industrial applications. With its forged construction and body trim 8, it is designed to withstand corrosive environments and extreme temperatures. This valve is API 602 compliant and has a pressure rating of 800 LB. Its compact size and socket weld design make it easy to install and operate, while the handwheel provides precise control over flow. Choose this valve for reliable and efficient performance.

Request a quote

Tags:

Forged Gate Valve

1/2 Inch Gate Valve

Class 800 LB Gate Valve

Detail Information

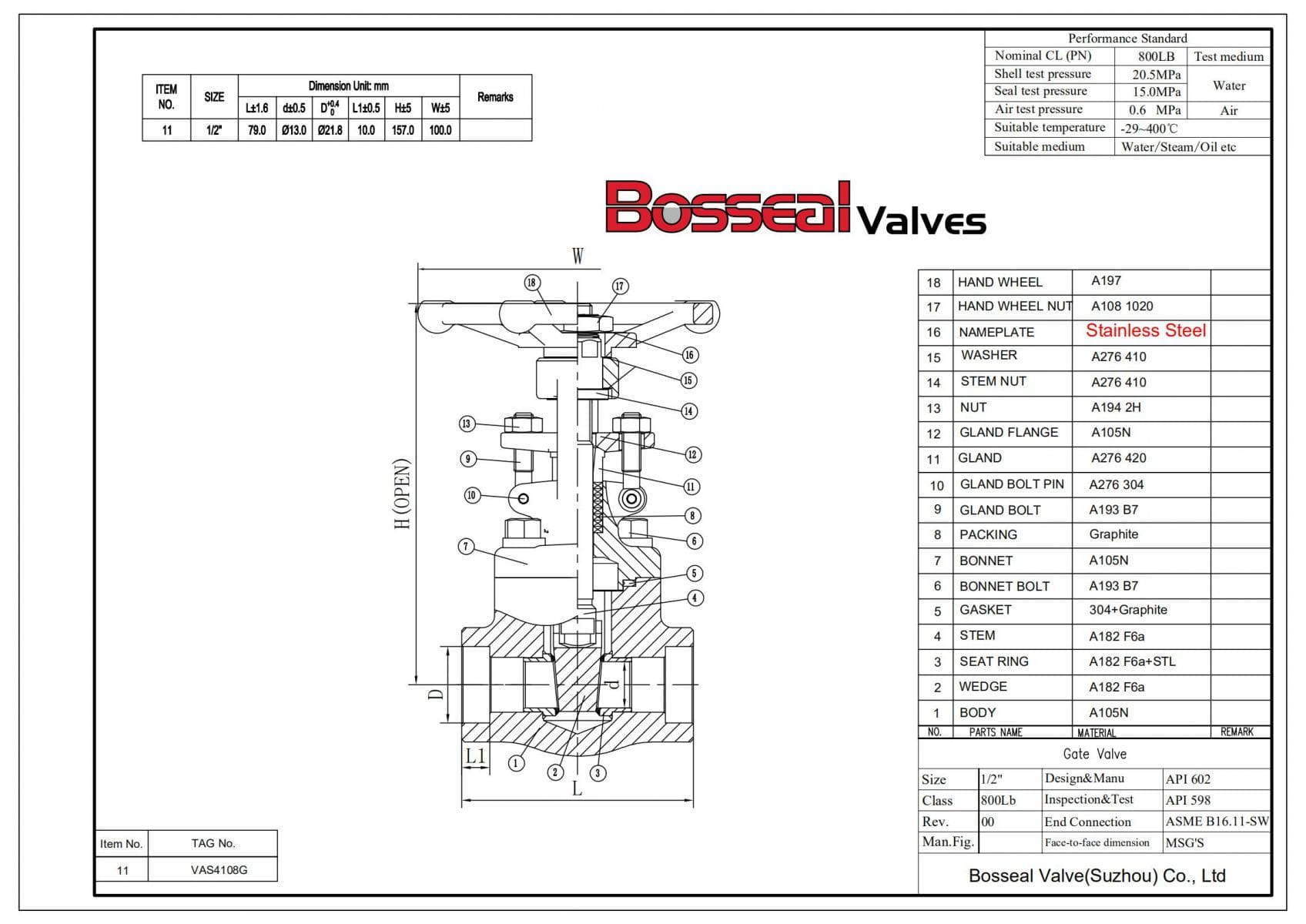

A105 Body Trim 8 Forged Gate Valve, API 602, 1/2 INCH, 800 LB, SW, Handwheel

Valve Description:
1851007 API 602 Forged Gate Valve 0.5G8SA10508
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 1/2 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: 1Cr13+STL, No.8
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel

Next: ASTM A105 Gate Valve, 1/2 Inch, 1500 LB, API 602, BW

Previous: ASTM A105N Forged Globe Valve, API 602, 1 Inch, 800 LB, SW

Similar Products

API 602 Forged Gate Valve, 2 Inch, 800 LB, ASTM A105, SW

A105 Body 316 Trim Forged Gate Valve, 1/2 Inch, 800 LB, SW

ASTM A182 F304 Gate Valve, 3/4 Inch, 800 LB, API 602

Stainless Steel Gate Valve, F316, API 602, 3/4 Inch, 800 LB
