ASTM A105 Floating Ball Valve, ISO 17292, 1/2IN, 800 LB, NPT

Key Specifications / Features

Model no. : 0.5BB8NA105N

Get reliable performance with our 1/2 inch, 800 LB Floating Ball Valve. Designed with NPT Threaded End and ISO 17292 standards, this valve features an A105 body with 316 Trim, RPTFE seat, and lever operation. Explore our high-quality valve for optimal functionality and durability.v

Detail Information

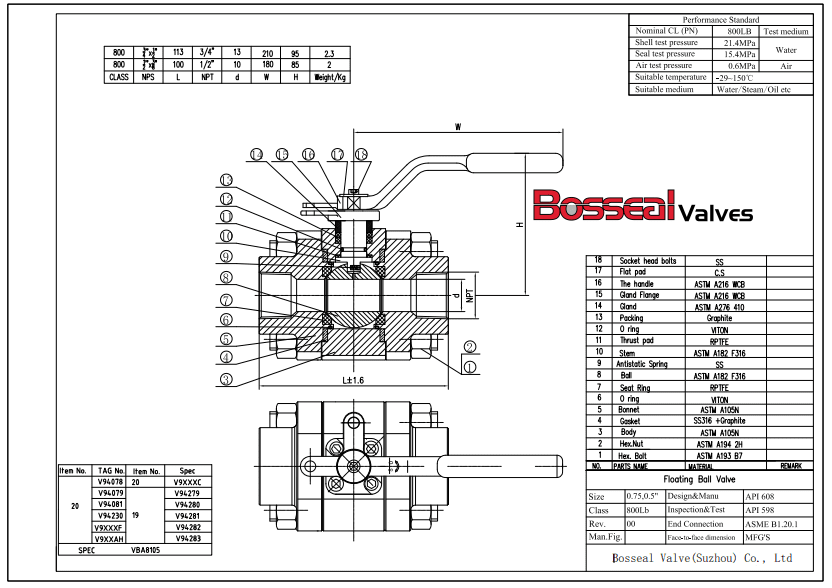

1/2 inch, 800 LB, Floating Ball Valve, NPT Threaded End, ISO 17292, A105 body with 316 Trim, RPTFE seat and lever operation

Valve Description:
1812008 Floating Ball Valve 0.5BB8NA105N
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1/2 Inch
Nominal class: 800 LB
Bore Type: Reduced Bore
End Connection: NPT/BSP
Operation: Lever Lockable
Body Material: ASTM A105
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator




Nickname*:
E-mail*:
Rate*:
Comments*:

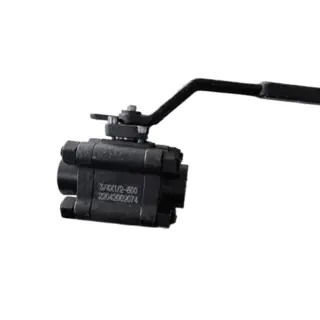

Next: API 608 ISO 17292 Floating Ball Valve, 3/4 IN, 800 LB, A105
