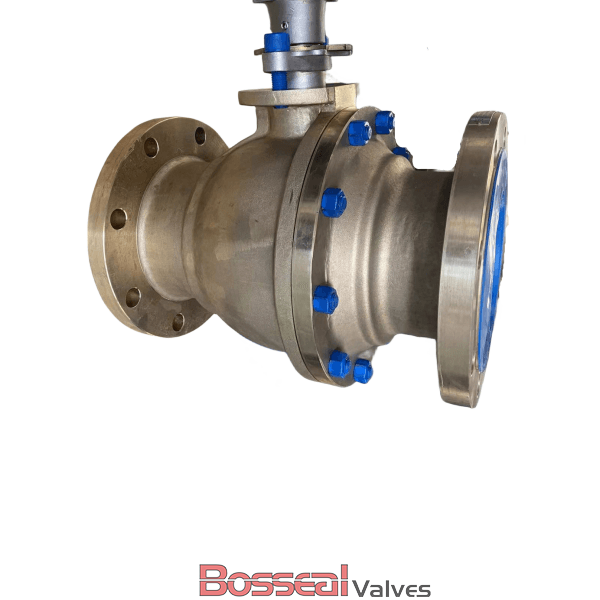

ASME B16.34 Soft Seat Ball Valve, B148 C95800, 3 IN, 300 LB

Key Specifications / Features

Model no. : BV-20250322-04

As a trusted provider of soft seat ball valves, we offer high-performance solutions designed to ASME B16.34 standards. Crafted from durable aluminum bronze ASTM B148 C95800, our 3-inch (DN80) ball valves deliver excellent corrosion resistance and reliability. With a Class 300 LB (PN50) rating, they ensure superior performance in high-pressure applications. Featuring a full bore design, lever operation for easy control, and FF or RF flanged ends for secure installation, these valves are ideal for marine, offshore, and industrial use.


Detail Information

Valve Description:
187301024 Aluminium Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 3 Inch, DN80
Nominal Class: 300 LB, PN50
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Lever
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C to +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
