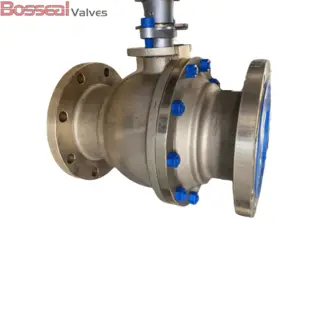

ASME B16.34 Side Entry Ball Valve, B148 C95800, 20 IN, CL150

Key Specifications / Features

Model no. : BV-187301013

As a leading side entry ball valve factory, we manufacture high-quality valves built to ASME B16.34 standards. Our 20-inch (DN600) side entry ball valve features a robust ASTM B148 C95800 aluminum bronze body, ensuring exceptional corrosion resistance and durability. Designed with a bolted bonnet for secure sealing and easy maintenance, it is rated for Class 150 LB and comes with raised face (RF) flanged ends for reliable installation. Engineered for demanding industrial applications, our side entry ball valves deliver long-lasting performance and operational efficiency.

Detail Information

Valve Description:
187301013 Aluminium Bronze Ball Valve
Design Standard: ASME B16.34, API 6D, BS 5351
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 24 Inch, DN600
Nominal Class: Class 150 LB, PN16, PN20
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: Raised Face (RF), Flat Face (FF)
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
