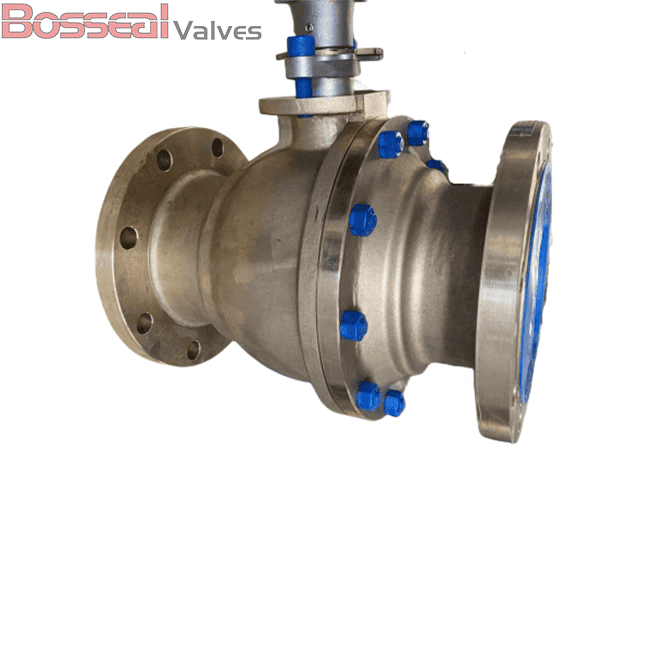

ASME B16.34 Ball Valves, Aluminum Bronze C95800, 40IN, CL150

Key Specifications / Features

Model no. : BV-187301019

As a trusted supplier in China, we provide high-quality aluminum bronze ball valves designed to ASME B16.34 and API 6D standards. This 40-inch valve features a robust ASTM B148 C95800 body and durable ASTM B150 C63200 trim, ensuring exceptional corrosion resistance and longevity. Rated for Class 150 LB, it is equipped with RF flanged ends for secure installation and reliable sealing. Engineered for demanding marine, offshore, and industrial applications, our aluminum bronze ball valves deliver superior performance in harsh environments, meeting the highest industry standards.

Detail Information

Valve Description:
187301019 Aluminium Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 40 Inch
Nominal Class: Class 150 LB
Bore Type: Full Bore or Reduced Bore
Operation: Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
End Connection: FF or RF Flanged
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
