Key Specifications / Features

Model no. : 1.5B1RWCB

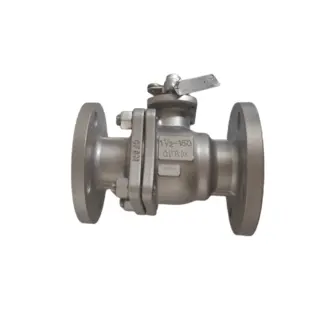

Discover a leading manufacturer of Two-Piece Floating Ball Valves, available in a 1-1/2 inch (DN40) size, with Class 150 LB and PN20 ratings. Crafted from ASTM A216 WCB with an F316 Trim, these valves feature soft seats and meet industry standards, including API 608, ISO 17292, and API 6D. Designed with RF ends for reliable performance.


Detail Information

Floating Ball Valve, API 608, DN40, 1-1/2 Inch, 150 LB, RF, A216 WCB Body, F316 Trim, Soft Seat, ISO 5211 Mounting pad, Lever Operation

Valve Description:
1812021 Floating Ball Valve 1.5B1RWCB
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1.5 Inch, DN40
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Operation
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F316, RPTFE/TFM 1600
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: Stainless Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 300 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
