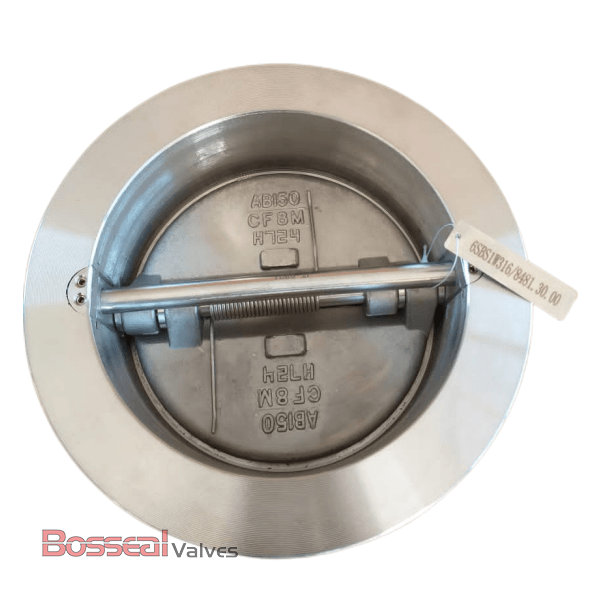

API 6D Dual Check Valve, 42 Inch, Class 300 LB, A351 CF8M

Key Specifications / Features

Model no. : 1842058

As a leading manufacturer of API 6D dual plate check valves in China, we specialize in 42-inch, Class 300 LB non-return valves made from ASTM A351 CF8M stainless steel with wafer connections. These spring-loaded, one-way valves are designed to prevent backflow in pipelines. Featuring a one-piece body, a central pin, and two spring-loaded plates, they allow fluid to pass in the flow direction and block it when flow reverses. Compared to conventional swing check valves, our dual plate check valves significantly reduce weight and length, saving cost and space in piping systems.

Detail Information

API 6D Dual Plate Check Valve, 42 Inch, CL 300 LB, ASTM A351 CF8M Body, Wafer End Connection.

Valve Description

1842058 Dual Plate Check Valve
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Nominal Size: 42 Inch, DN1050
Nominal Class: Class 300 LB
Body Material: ASTM A351 CF8M, ASTM A890 4A, ASTM A351 CF8, ASTM A216 WCB, ASTM A352 LCB, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
End Connection: Wafer, Lug, Flanged-RF, RTJ
