API 6D Dual Check Valve, 3 Inch, Class 1500 LB, B148 C95800

Key Specifications / Features

Model no. : CV-20240816-01

We specialize in API 6D dual plate check valves designed for reliable non-return flow control. Our 3-inch valves, rated for Class 1500 LB, are made from high-quality ASTM B148 C95800 aluminum bronze, ensuring excellent corrosion resistance and durability in demanding environments. Featuring a wafer connection for easy installation, our valves are engineered to provide superior performance and longevity. As a leading check valve manufacturer in China, we are committed to delivering top-quality products that meet your industrial needs.


Detail Information

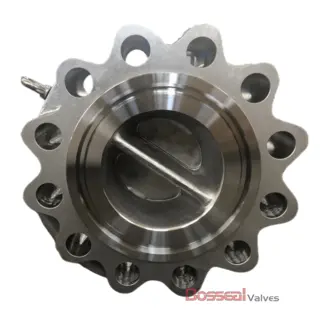

API 6D Dual Plate Check Valve, 3 Inch, CL 1500 LB, Aluminum Bronze ASTM B148 C95800.

Valve Description

1842104 Dual Plate Check Valve
Design Standard: API 6D, API 594
Structure: Spring Loaded, Dual Plate
Nominal Size: 3 Inch, DN80
Nominal Class: Class 1500 LB
Body Material: ASTM B148 C95800, ASTM A890 5A, 4A, ASTM A351 CF8M, ASTM A351 CF8, ASTM A216 WCB, ASTM A352 LCB, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
End Connection: Wafer, Lug, Flanged-RF, RTJ
