Key Specifications / Features

Model no. : 1811116

Explore our comprehensive range of API 6D ball valves, including trunnion-mounted designs, in a 4-inch size and 600 LB rating. Our offerings feature DN100 and PN100 specifications, conforming to BS 5351 standards, crafted from high-quality materials like ASTM A105N and ASTM A350 LF2. These valves come in a 3-piece construction with DEVLON seats, equipped with a lever for easy operation, and designed for RF connections. Find reliable solutions for your industrial needs with our trusted API 6D ball valve collection.


Detail Information

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 4 INCH, 600 LB, RF, DEVLON seat, Lever Operation

Valve Description:
1811116 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 4 Inch
Nominal class: 600 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Lever
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator




Nickname*:
E-mail*:
Rate*:
Comments*:

Next: ASTM A105N Ball Valve, A350 LF2, 6 Inch, 600 LB, API 6D, RF

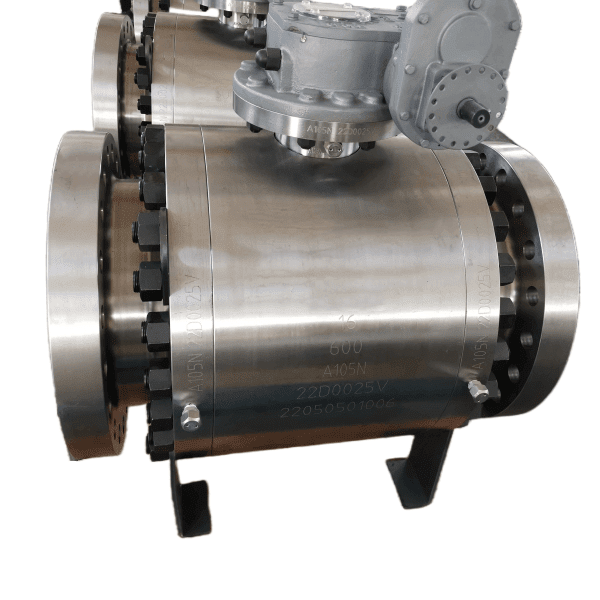

Previous: Trunnion Mounted Ball Valve, API 6D, 16IN, 600LB, A105N, RF
