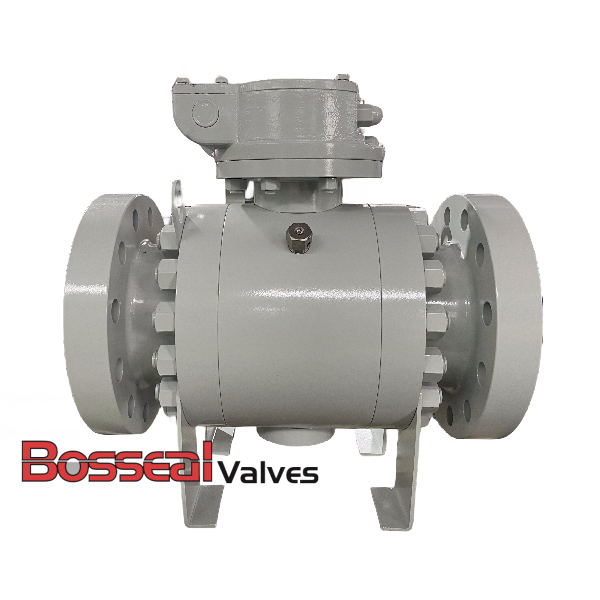

API 6D Ball Valve, 3-PC ASTM A105N, 3 Inch, 300 LB, RF

Key Specifications / Features

Model no. : 1811094

Our API 6D 3PCS Ball Valve Fabricator offers precision-engineered reliability for industrial applications. This valve, with specifications of 3 Inch, 300 LB, DN80, PN50, ASTM A105N, ASTM A350 LF2, and conforming to BS 5351 standards, is designed for optimum performance. Featuring a robust trunnion-mounted design and RPTFE seat, it ensures durability and smooth operation. With RF flanged end connections, this valve guarantees secure and leak-free installations. Trust in our valve for superior quality and efficiency in your operations.


Detail Information

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 3 INCH, 300 LB, RF, RPTFE seat

Valve Description:
1811094 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 3 Inch
Nominal class: 300 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RF Flanged
Operation: Lever
Body Material: ASTM A105N, ASTM A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
