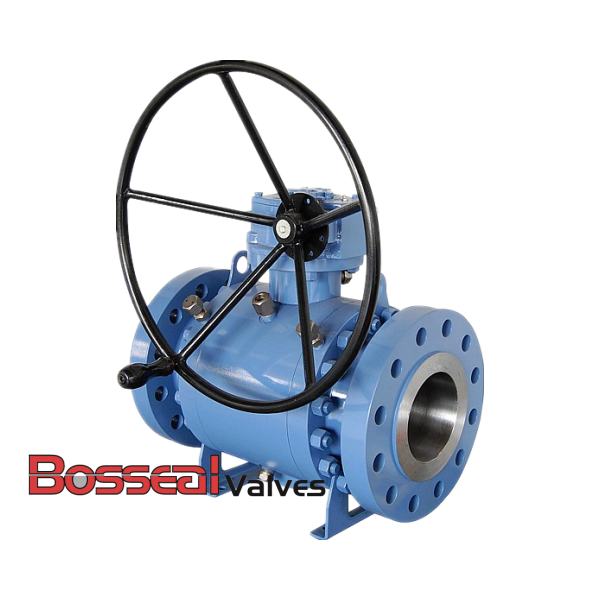

API 6D Ball Valve, 3 PC, 32 Inch, 900 LB, ASTM A350 LF2, RTJ

Key Specifications / Features

Model no. : 1811150

Discover top-quality API 6D ball valves from a leading manufacturer. Our selection includes a 32-inch model with DN800 size, designed for Class 900 LB and PN150 applications. Crafted from ASTM A350 LF2 and A105N materials, these 3-piece valves boast a trunnion-mounted design, RTJ flanged ends, and double block and bleed functionality. Equipped with gears for smooth operation, these valves adhere to API 6D standards.


Detail Information

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 32 INCH, 900 LB, RTJ, DEVLON seat, Gear Operation

Valve Description:
1811150 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 32 Inch
Nominal class: 900 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: DEVLON
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
