API 609 Triple Offset Butterfly Valve, 36 Inch, 150 LB, WCB

Key Specifications / Features

Shop high-quality Triple Offset Butterfly Valves from a leading manufacturer. Our valves are designed to meet API 609 Cat B, EN 593 standards and feature a size of 36 inches. With a Class 150 LB rating and DN900 specifications, these valves are built to handle demanding applications. The PN20 pressure rating and metal seat with a double flange ensure reliable performance. Equipped with an SS + Graphite Sealing Ring, our valves provide excellent sealing capabilities. Trust our expertise for top-notch butterfly valves that deliver exceptional performance.

Request a quote

Tags:

API 609 Butterfly Valve

36 Inch Butterfly Valve

Class 150 LB Butterfly Valve

Detail Information

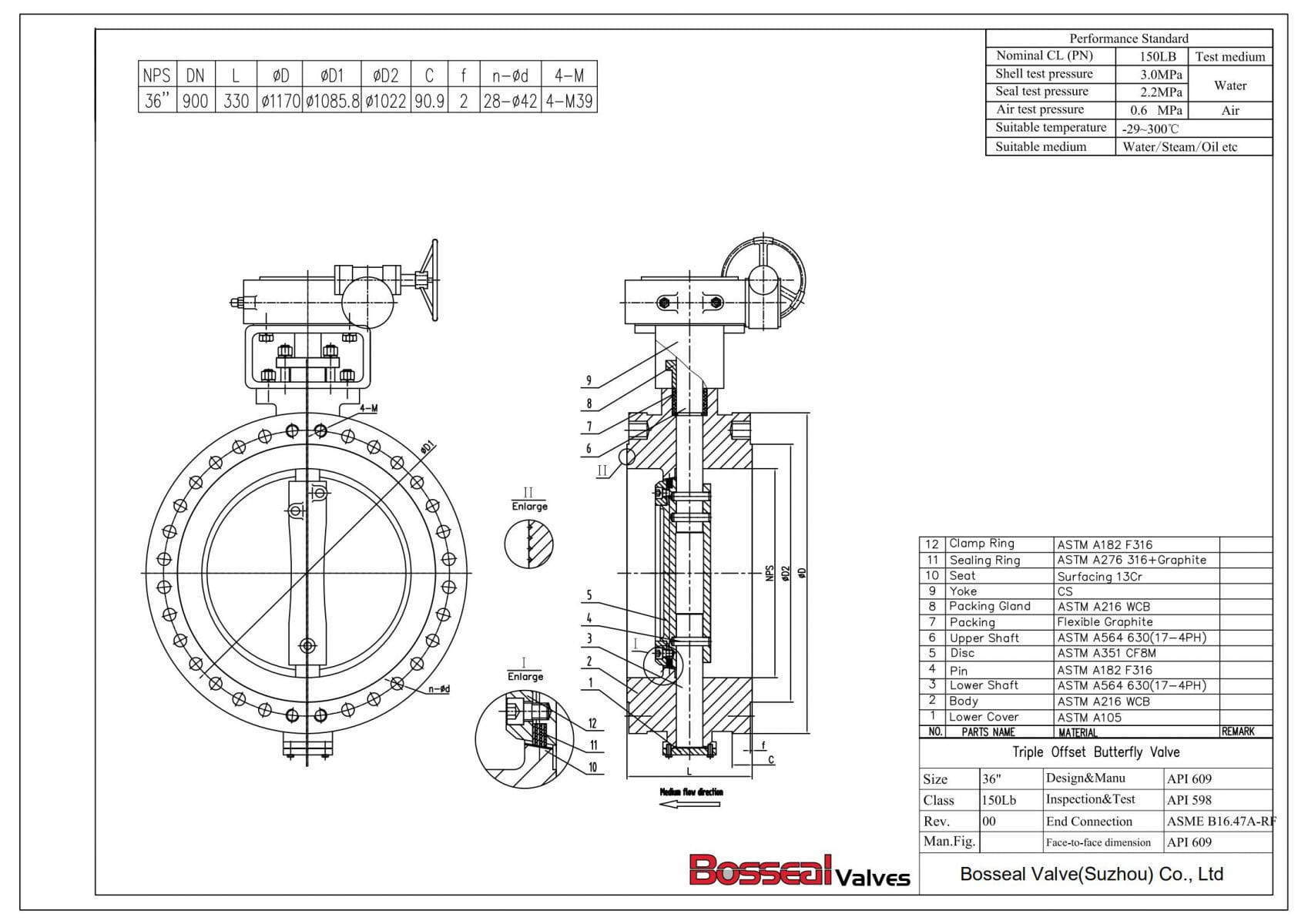

36 inch (DN900) Triple Offset Butterfly Valve, Metal Seat, API 609, EN 593, 150 LB, Double Flange, WCB body, CF8M Disc, SS + Graphite Sealing Ring, CR13 Overlay Seat, Gear Operation

Valve Description:
1863003 Triple Offset Butterfly Valve 36TC1RWCB
Design Standard: API 609 Cat B, EN 593
Structure: Triple Offset
Nominal size: 36 Inch
Nominal class: 150 LB
End Connection: Double Flange-ASME B16.47 Series A
Operation: Gear
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, Laminated Sealing ring SS 316 + Graphite
Face to face: API 609
Test and inspection: API 598
Key Features: Metal Seat for high Temperature and various fluids, Low torque, Replaceable seat, Zero Leakage, Excellent control characteristics, Fire Safe

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, BW
Working temperature: -29℃ - +400℃
Operation: Lever, Gear, Motor, Pneumatic Actuated
