API 609 Category B
Butterfly Valves, 30 Inch, Soft Seat, Gear Operation.
Valve Description

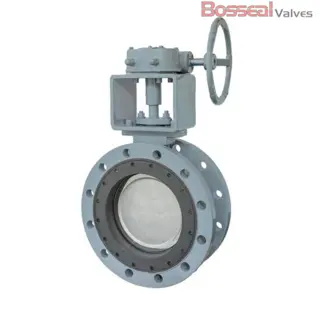

1862090 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 30 Inch, DN750
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: Titanium, ASTM A351 CF8M, ASTM A890 5A, ASTM A890 4A, ASTM A216 WCB, ASTM A351 CF8, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
| Body Material: |
Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium |
| Normal Diameter: |
1/2 Inch - 48 Inch (DN15 - DN1200) |
| Pressure Range: |
Class 150 LB - 300 LB |
| Working Temperature: |
-26°C to +120°C (180°C for PPL seat) |
| End Connection: |
Wafer, Lug, Flanged |
| Operation: |
Manual (lever, gear), Pneumatic Actuator, Motor Actuator |
| Bosseal Valve advantages: |
0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe
|
Double Eccentric Butterfly Valve Introduction
The Double Eccentric Butterfly Valve offers significant advantages over other valve types, including cost savings, space efficiency, and a broader size range. Its design features faster operation and reduced friction and wear between the disc and seat sealing surfaces, which contributes to an extended service life and lower total cost of ownership.
The valve's two-offset design enhances its durability, reduces operating torque, and makes it ideal for frequent use. Bosseal’s high-performance butterfly valves have been rigorously tested and proven to withstand over a million cycles.
