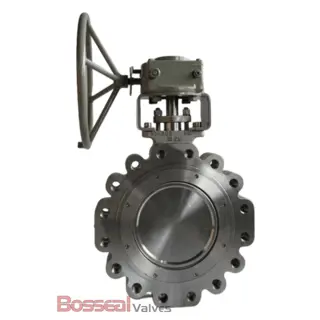

API 609 Soft Seated Butterfly Valve, A890 4A, 14IN, CL150

Key Specifications / Features

Model no. : 1862125

We specialize in ASTM A890 4A double offset butterfly valves. Our high-performance valves meet API 609 Category B and EN 593 standards, ensuring reliable operation in various industrial applications. Designed with a 14-inch size and 150 LB pressure rating, these valves feature a soft seat for excellent sealing performance and durability. Offering superior efficiency and precision control, our butterfly valves are ideal for critical service environments. As a leading butterfly valve manufacturer in China, we are committed to delivering top-quality, high-performance valve solutions.

Detail Information

High-Performance Butterfly Valves, 14 IN/DN350, 150 LB, Double Offset, Double Flanged End.

Valve Description

1862125 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A890 4A, ASTM A216 WCB, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium
Nominal Size: 14 Inch, DN350
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles)
2. Reduced torque for smoother operation
3. Replaceable seat for easy maintenance
4. Reliable tight sealing performance
5. Superior control characteristics
6. Bi-directional sealing under full pressure
7. Fire-safe seat option available

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Seat Type: PTFE, RPTFE, PPL(for higher temperature), RPTFE+Metal (Fire Safe)
Top Mounting: ISO 5211 Top Mounting Available


Drawing for Butterfly Valve
