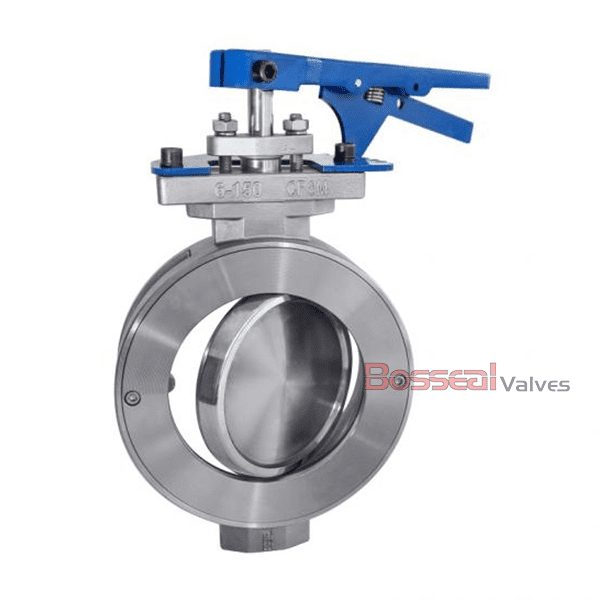

API 609 RPTFE Seated Butterfly Valve, A890 5A, CL300, 26 IN

Key Specifications / Features

Model no. : 1862193

As a leading manufacturer of double offset butterfly valves, we offer products designed to API 609 B and EN 593 standards. Our 26-inch, Class 300 LB valves feature a robust construction using ASTM A890 5A duplex stainless steel. With wafer-type ends and a double eccentric design, these valves deliver exceptional performance and reliability. The 17-4PH stem ensures superior strength and resistance to corrosion, making our valves ideal for demanding industrial applications.

Detail Information

RPTFE Seated Butterfly Valve, Double Offset, 26 Inch/DN650, Class 300 LB, Gear Operation.

Valve Description

1862193 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A890 5A, ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800, ASTM A351 CF8.
Nominal Size: 26 Inch, DN650
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Wafer
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inches (DN15 - DN1200)
Pressure Range: Class 150 - 300 LBS
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available

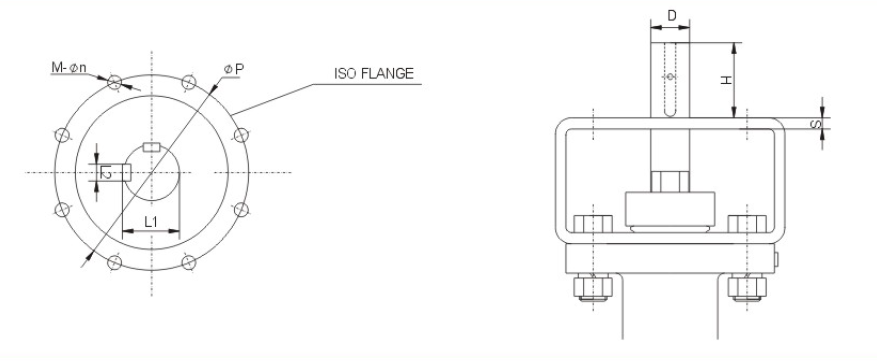

ISO 5211 Top Mounting
ISO 5211 Top Mounting
