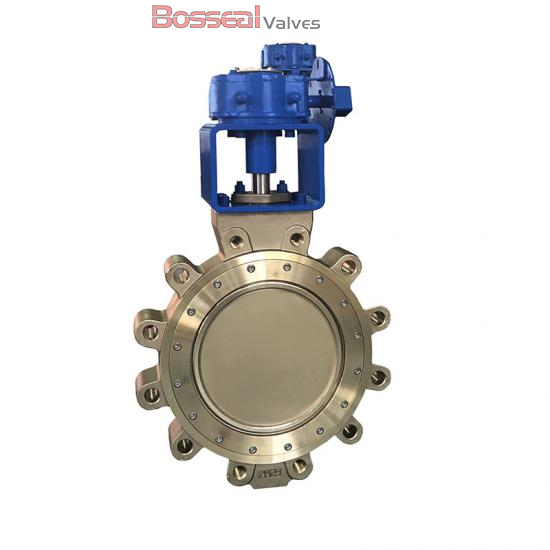

API 609 Lug Butterfly Valve, EN 593, CL300, 40IN, B148 C95800

Key Specifications / Features

Model no. : 1862240

As a leading supplier of double offset butterfly valves, we provide high-quality solutions meeting API 609 Category B standards. Our 40-inch valves feature a double eccentric design with a durable ASTM B148 C95800 body and a 17-4PH stem. Rated for Class 300 LB, these valves are soft-seated for optimal sealing and reliability. Engineered for superior performance and long service life, they are ideal for demanding industrial applications requiring precision control and durability.

Detail Information

API 609 Category B Butterfly Valve, Lug End, 40 Inch, 300 LB, Gear Operation.

Valve Description

A double offset butterfly valve is widely used in the pipeline for isolation and regulating applications especially where request frequent open/close.

1862240 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Nominal Size: 40 Inch
Nominal Class: Class 300 LB
Structure: Double Offset, Double Eccentric
Body Material: ASTM B148 C95800, Titanium, ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Seat: RPTFE, PPL
End Connection: Lug
Operation: Gear
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.


Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2  - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150  - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
