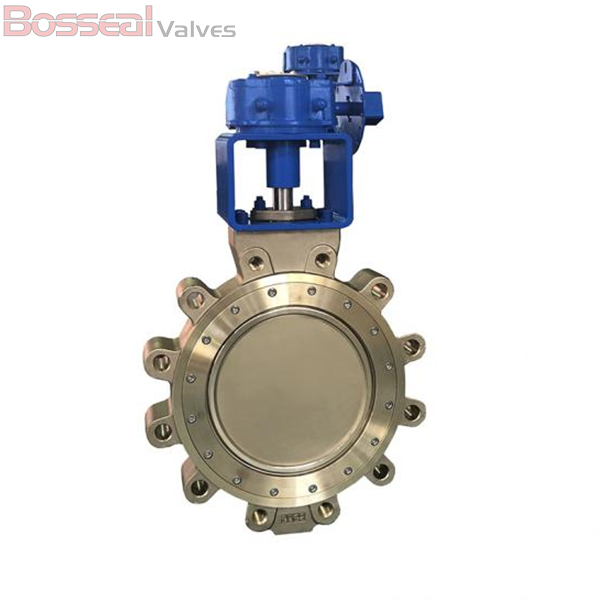

API 609 Double Offset Butterfly Valve, Titanium, CL150, 18 IN

Key Specifications / Features

Model no. : 1862379

As a leading manufacturer of flanged butterfly valves, we offer high-quality 18-inch (DN450) valves designed to EN 593 and API 609 Category B standards. These double-offset valves feature a titanium body for exceptional durability, a Monel K500 stem, and an RPTFE seat for reliable sealing. Rated for Class 150 LB, they are ideal for various industrial applications requiring superior corrosion resistance and long-lasting performance. Engineered for precision and strength, our butterfly valves deliver optimal performance in demanding environments where durability and frequent operation are essential.

Detail Information

High-Performance Butterfly Valve, 18 Inch/DN450, 150 LB, Double Offset, Gear Operation.

Valve Description

1862379 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 18 Inch, DN450
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: Titanium, ASTM B148 C95800, ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8, ASTM A351 CF8M, ASTM A216 WCB.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150-300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
