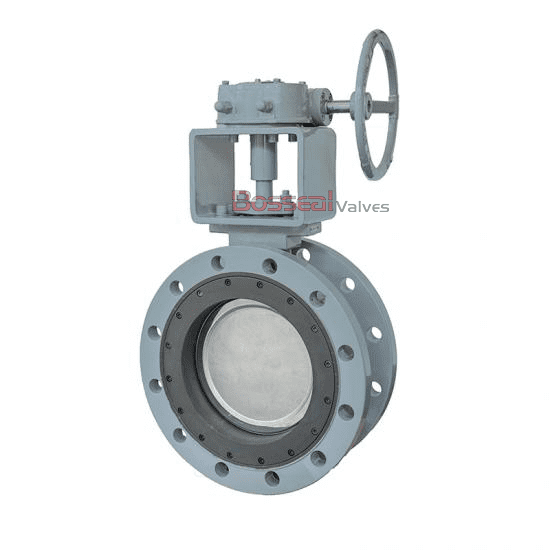

API 609 Double Offset Butterfly Valve, Titanium, 30IN, 300 LB

Key Specifications / Features

Model no. : 1862153

As a leading manufacturer of high-performance butterfly valves, we provide products designed to API 609 B and EN 593 standards. Our 30-inch, CL 300 LB valves feature a double offset design for enhanced control and durability. Constructed from titanium, these valves offer superior strength and corrosion resistance. The RPTFE seat ensures a tight seal, while the 17-4PH stem provides exceptional performance. With double-flanged ends for easy installation, these valves are engineered for reliability and efficiency in demanding industrial applications.

Detail Information

RPTFE Seated Butterfly Valve, Double Offset, 30 Inch/DN750, Class 300 LB, Gear Operation.

Valve Description

A double offset butterfly valve is extensively used in pipelines for isolation and flow regulation, particularly in applications that demand frequent opening and closing.

1862153 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: Titanium, ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M.
Nominal Size: 30 Inch, DN750
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Double Flanged
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged


Name*
E-mail*
Rate*
Comments*

Next: Double Offset Flanged Butterfly Valve, CF8, 32 IN, CL 300 LB

Previous: Aluminum Bronze Butterfly Valve, B148 C95800, 28 IN, 300 LB

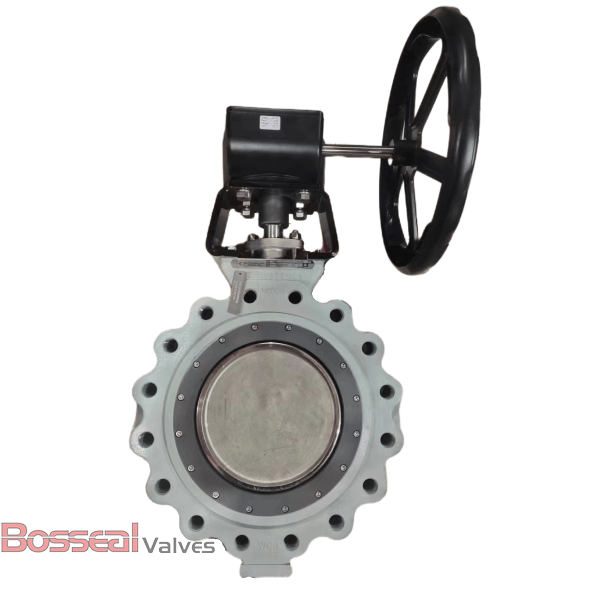

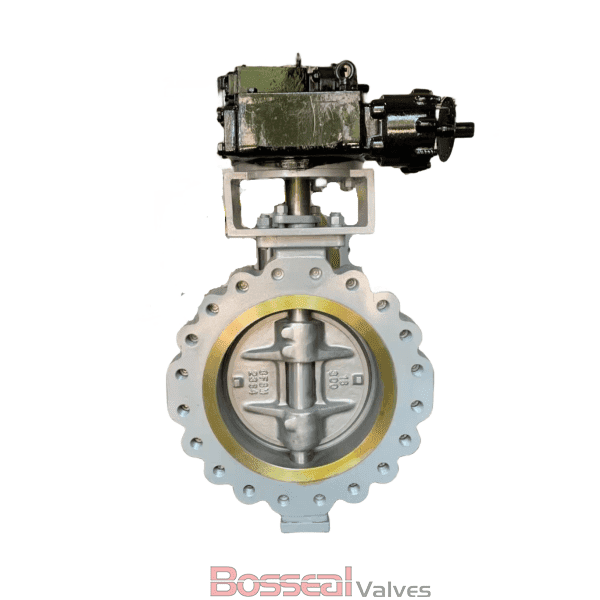

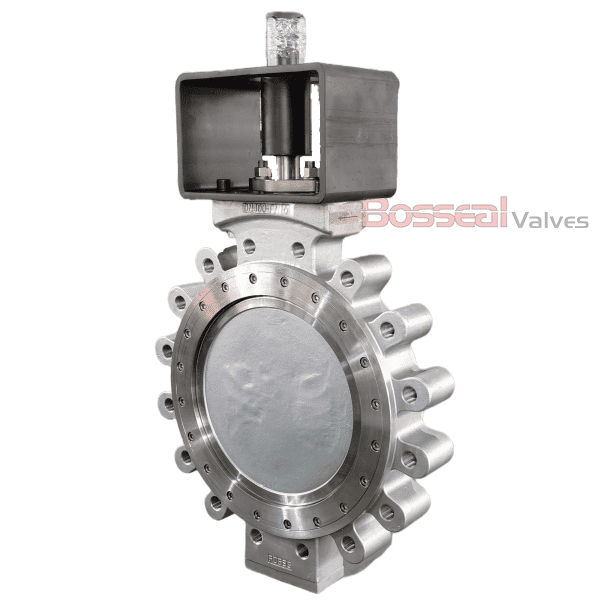

Similar Products
