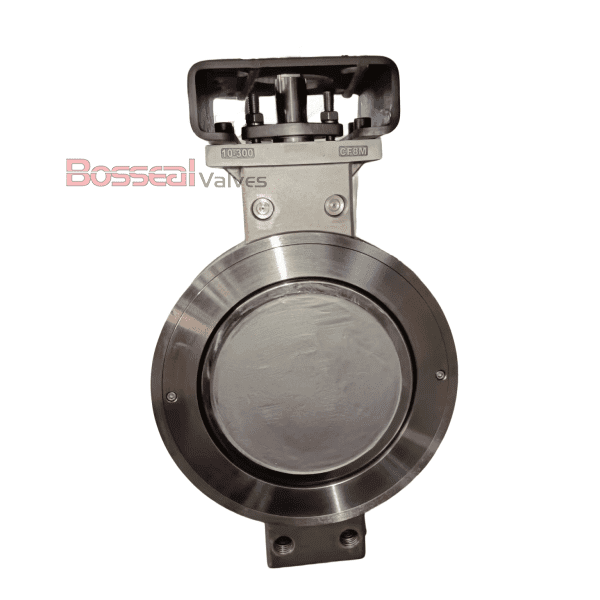

API 609 Double Offset Butterfly Valve, CF8M, 28 IN, CL150

Key Specifications / Features

Model no. : 1862173

As a manufacturer of high-performance RPTFE seated butterfly valves, we offer solutions designed to meet API 609 B and EN 593 standards. Our 28-inch valves are made from ASTM A351 CF8M stainless steel, ensuring durability and reliability. Rated at Class 150 LB, these double offset valves feature a robust 17-4PH stem and a soft RPTFE seat for excellent sealing. The wafer end design allows for easy installation and maintenance, making our valves ideal for a range of demanding industrial applications.

Detail Information

RPTFE Seated Butterfly Valve, Double Offset, 28 Inch/DN700, Class 150 LB, Gear Operation.

Valve Description

1862173 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8.
Nominal Size: 28 Inch, DN700
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Wafer
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe
