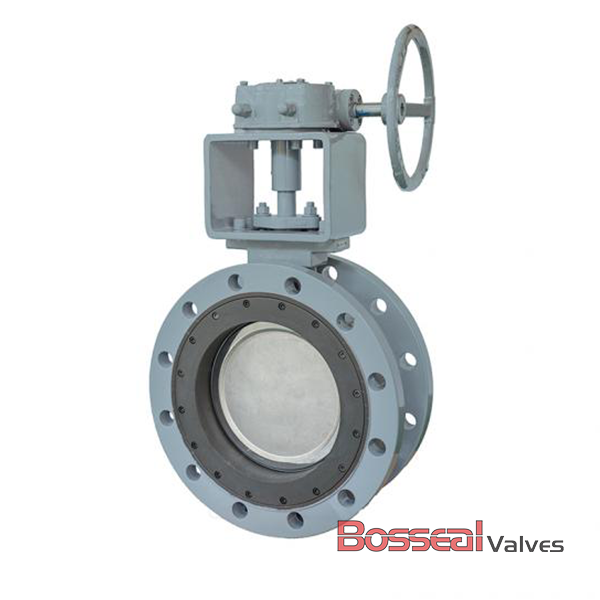

API 609 High-Performance
Butterfly Valve, 24 Inch/DN600, CL 300 LB, RPTFE Seat.
Valve Description
1862276 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 24 Inch, DN600
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A890 5A, ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM A351 CF8, ASTM A890 4A, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: Titanium, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Product Range
| Body Material: |
Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium. |
| Normal Diameter: |
1/2 - 48 Inch (DN15-DN1200) |
| Pressure Range: |
CL 150 LB - 300 LB |
| Working Temperature: |
-26°C - +120°C (180°C for PPL seat) |
| End Connection: |
Wafer, Lug, Flanged(FF, RF, RTJ) |
| Top Mounting: |
ISO 5211 Top Mounting Available |
| Operation Types: |
Lever, Gear, Pneumatic Actuator |
| Operation: |
Manual (lever, gear), Pneumatic Actuator, Motor Actuator |
Introduction of Double Eccentric Butterfly Valve
Offering significant cost and space savings compared to other valve types, the double eccentric butterfly valve features a larger size range and faster operation. Its design minimizes restriction and wear between the disc and seat sealing surfaces, ensuring a longer cycle life and reduced total cost of ownership. With its two offsets, the valve delivers extended durability and lower torque, making it ideal for frequent use. The Bosseal high-performance butterfly valve has successfully passed a million-cycle test.
