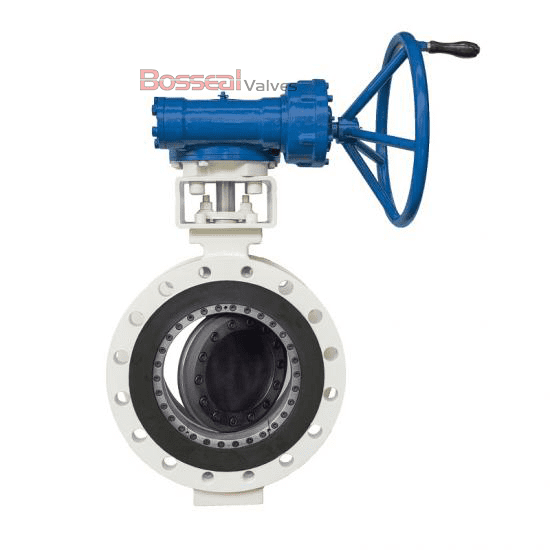

API 609 Double Flanged Butterfly Valve, 4A, 24 IN, CL 300

Key Specifications / Features

Model no. : 1862150

Our high-performance butterfly valve, designed to API 609 Category B standards, features a double eccentric design for superior control and durability. Crafted from ASTM A890 4A duplex stainless steel, this 24-inch valve is rated for 300 LB pressure and includes a robust 17-4PH stem. The soft seat ensures a tight seal and reliable operation, while the double-flanged ends facilitate easy installation. Engineered for optimal performance and resilience, this valve is ideal for demanding applications in various industries.

Detail Information

17-4PH Stem Butterfly Valve, API 609 Cat B, 24 Inch/DN600, 300 LB, Gear Operation.

Valve Description

1862150 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Nominal Size: 24 Inch, DN600
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A890 4A, Titanium, ASTM A351 CF8, ASTM B148 C95800, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 5A.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
Structure: Double Offset, Double Eccentric
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2  - 48 Inch (DN15 - DN1200)
Pressure Range: 150  - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Top Mounting: ISO 5211 compliant top mounting available.
Operation Types: Lever, gear, and pneumatic actuator options.
Bosseal Valve Advantages: Zero leakage, low torque, extended service life, low emissions, bi-directional flow, and fire-safe design.
