Key Specifications / Features
Model no. : BTV-187302008

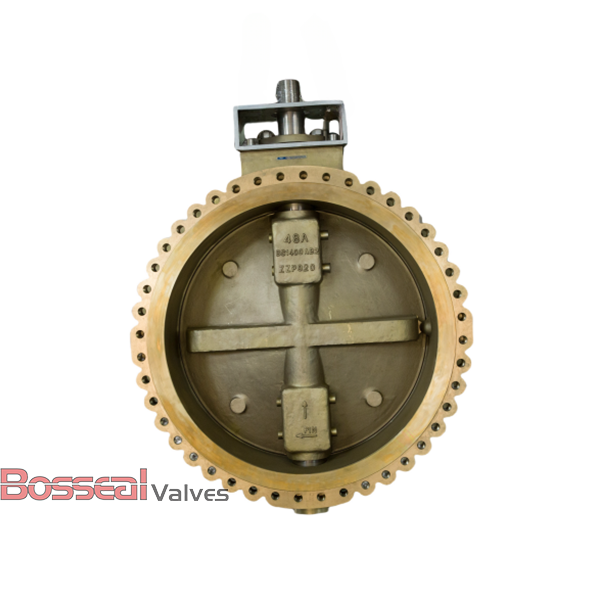

As a leading butterfly valve manufacturer in China, we supply high-performance aluminum bronze butterfly valves designed to API 609 Category B standards. Built with a robust ASTM B148 C95800 body, these 12-inch (DN300) valves are rated for Class 150 LB and ensure exceptional corrosion resistance and durability. Available in wafer, lug, and flanged end connections, they provide reliable flow control and sealing performance in demanding marine, oil, gas, and industrial applications.
Valve Description:
187302008 High Performance Butterfly Valve
Design Standard: API 609 Category B, BS EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 12 Inch, DN300
Nominal Class: 150 LB, PN20
Seat Type: Soft Seat
End Connection: Wafer/Lug/Flanged
Operation: Lever/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Seat: RPTFE, PPL
Face to Face: API 609, BS EN 593
Test and Inspection: API 598, API 609
Key Features: Long working life for frequent operation(million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available, Aluminium bronze for sea water service
Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer/Lug/Flanged
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
