Key Specifications / Features
Looking for a reliable API 609 Category B Butterfly Valve manufacturer? Our high-quality valve features an 8 Inch, 150 LB, DN200, wafer design in compliance with EN 593 standards. Made with a durable ASTM A216 WCB body and an RPTFE seat, it offers superior performance. This double-offset valve is operated by a gear mechanism, ensuring precision and efficiency.
Detail Information

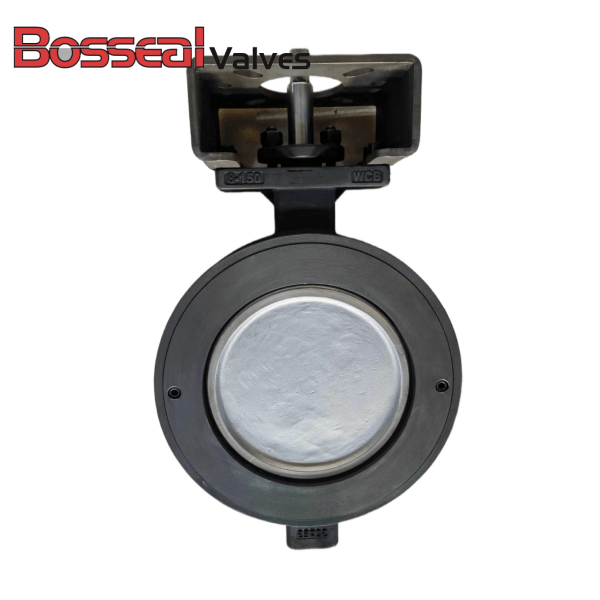

API 609 High Performance Butterfly Valve, 8 INCH, 150 LB, Wafer, ASTM A216 WCB body, 17-4PH stem, CF8M disc, RPTFE seat, Gear Operation
Valve Description:
1862038 High Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Nominal size: 8 Inch
Nominal class: 150 LB
Seat Type: Soft Seat
End Connection: Wafer
Operation: Gear
Body Material: ASTM A216 WCB
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Seat: RPTFE
Face to face: API 609, EN 593
Test and inspection: API 598, API 609
Key Features: Long working life for frequent operation (million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -26℃ - +120℃ (180℃ for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
