API 609 Cat B Lug Butterfly Valve, A890 5A, 16 IN, CL 150

Key Specifications / Features

Model no. : 1862084

Our double offset butterfly valve, crafted from ASTM A890 5A duplex stainless steel, is engineered for high performance and durability. Designed to API 609 Category B and EN 593 standards, this 16-inch, 150 LB valve features a soft seat for reliable sealing. Ideal for both isolation and regulating applications, it excels in environments requiring frequent operation. The lug end design ensures secure mounting, making it a versatile choice for various pipeline systems. Trust our advanced manufacturing process to deliver a valve that meets your rigorous demands.

Detail Information

High-Performance Butterfly Valves, 16 IN/DN400, 150 LB, Double Offset, Wafer End.

Valve Description

1862084 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800, Titanium
Nominal Size: 16 Inch, DN400
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles)
2. Reduced torque for smoother operation
3. Replaceable seat for easy maintenance
4. Reliable tight sealing performance
5. Superior control characteristics
6. Bi-directional sealing under full pressure
7. Fire-safe seat option available

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator


High-Performance Butterfly Valve

Name*
E-mail*
Rate*
Comments*

Next: ASTM B148 C95800 Butterfly Valve, 18 IN, 150 LB, EN 593

Previous: Double Offset Lug Butterfly Valve, Titanium, 14 Inch, 150 LB

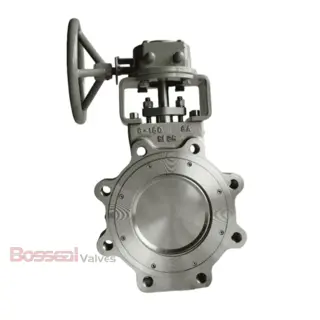

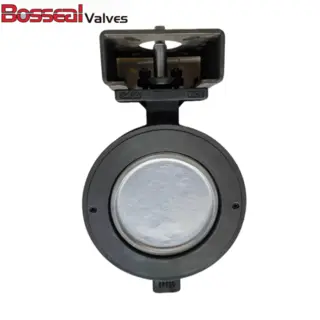

Similar Products
