API 609 Cat B Double Offset Butterfly Valve, 8 Inch, 150 LB

Key Specifications / Features

Welcome to our Double Offset Butterfly Valve Factory! We specialize in manufacturing API 609 Cat B valves with 8-inch size and DN200 dimensions. Our valves are designed to withstand 150 LB pressure and are fire safe. They feature a lug-type configuration, conforming to the API 609 standard. The valves are constructed using ASTM A216 WCB material and come with RF end connections. Equipped with RPTFE seats, our butterfly valves ensure optimal performance and reliability. Explore our range of high-quality valves for your industrial needs.

Request a quote

Tags:

API 609 Cat B Butterfly Valve

8 Inch Butterfly Valve

Class 150 LB Butterfly Valve

Detail Information

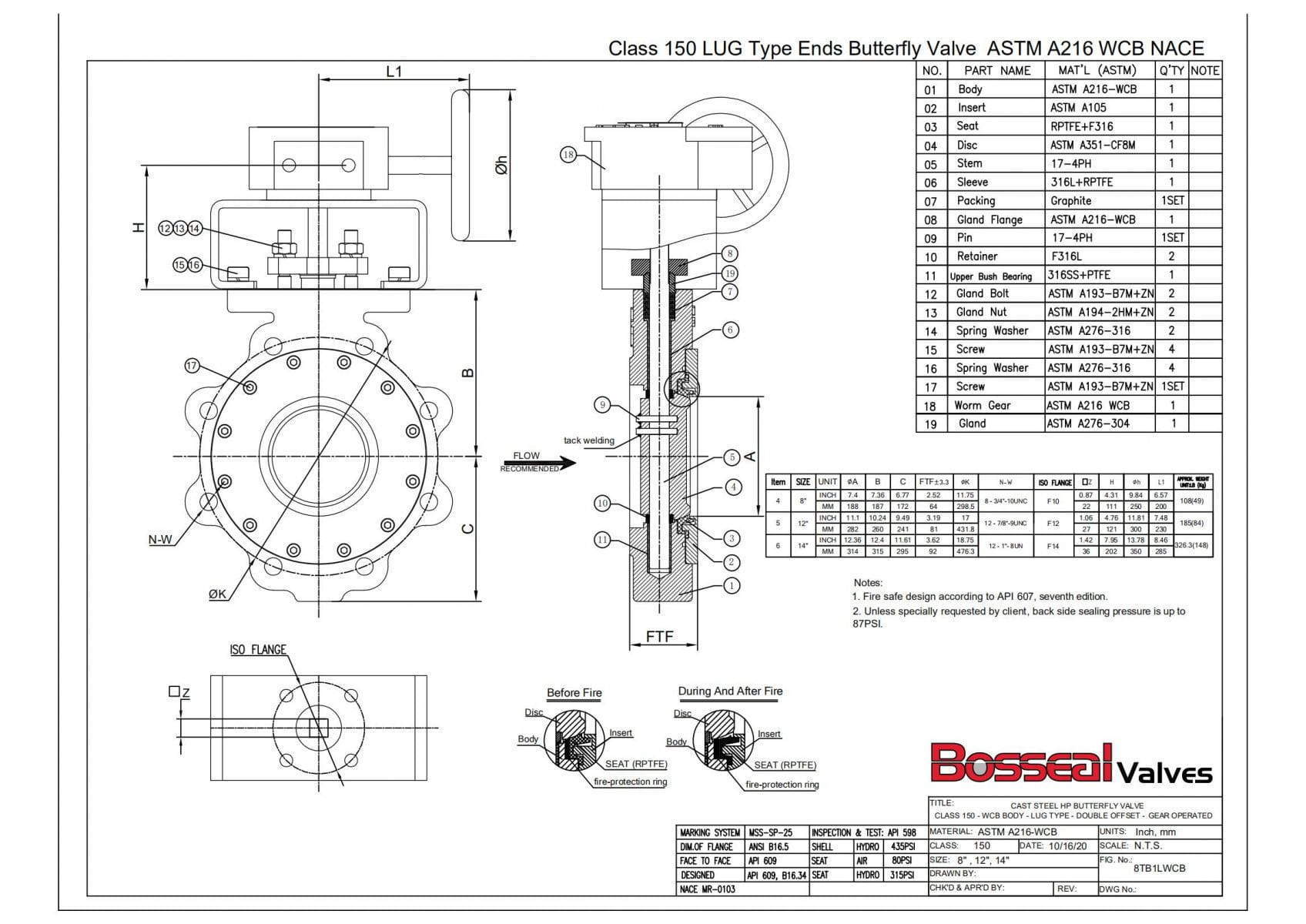

Fire Safe (API 607) Lug Type Carbon Steel High-Performance Butterfly Valve, Double Offset, API 609, 8 Inch, 150 LB, Lug, WCB body, CF8M Disc, RPTFE seat

Valve Description:
1862007 Double Offset Butterfly Valve 8TB1LWCB
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 8 Inch
Nominal class: 150 LB
End Connection: Lug-RF
Operation: Gear Operation
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, RPTFE+SS Fire safe seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close(million cycling), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics, Fire Safe design

Product Range:
Body material: ASTM A216 WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear

Next: Double Offset Butterfly Valve, 8 Inch, 300 LB, API 609, WCB

Previous: Bare Shaft Butterfly Valve, Double Offset, 6 IN, 150 LB, WCB

Similar Products

ASTM A995 5A Double Offset Butterfly Valve, API 609, 8 Inch

API 609 Cat B Double Offset Butterfly Valve, 12 Inch, 150 LB

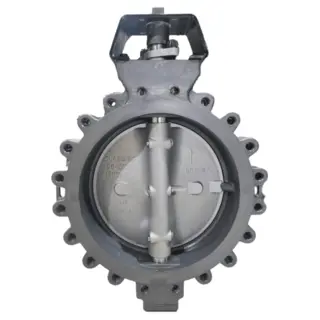

ASTM A216 WCB Double Offset Butterfly Valve, 14 Inch, 150 LB
