Key Specifications / Features
Model no. : BTV-187302006
As a leading butterfly valve manufacturer in China, we produce API 609 Category B butterfly valves designed to BS EN 593 standards. Our 8-inch (DN200) valves feature a robust aluminum bronze ASTM B148 C95800 body, providing superior corrosion resistance and durability. Available in wafer, lug, and flanged end connections, these Class 150 LB valves ensure reliable performance in demanding applications, including seawater, oil, and gas industries. Built for precision and longevity, our butterfly valves deliver exceptional sealing and flow control.
Valve Description:

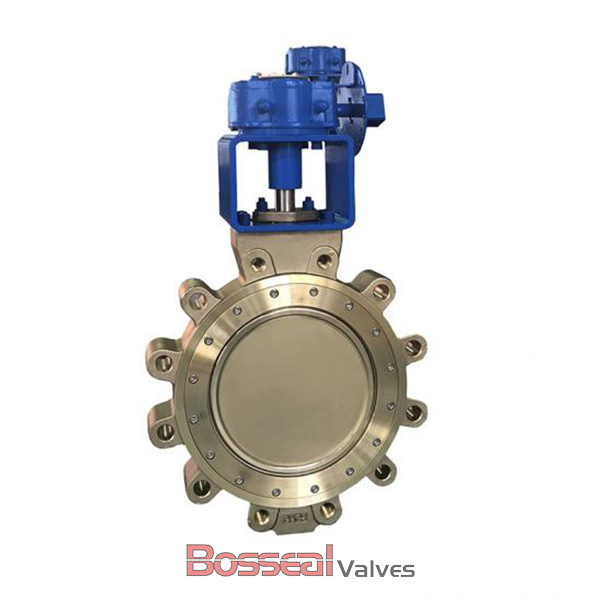

187302006 High Performance Butterfly Valve
Design Standard: API 609 Category B, BS EN 593
Face to Face: API 609, BS EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 8 Inch, DN200
Nominal Class: 150 LB
Seat Type: Soft Seat
Operation: Lever/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Seat: RPTFE, PPL
End Connection: Wafer/Lug/Flanged
Test and Inspection: API 598, API 609
Key Features: Long working life for frequent operation(million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available, Aluminium bronze for sea water service
Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer/ Lug/ Flanged
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
