API 609 Cat B Butterfly Valve, Double Offset, 3 Inch, CF8M

Name: API 609 Cat B Butterfly Valve, Double Offset, 3 Inch, CF8M
SKU: 3tb3wcf8m
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 3TB3WCF8M

This high-performance butterfly valve features a double offset design and is made of stainless steel with a DN80 size, PN25 pressure rating, and API 609 compliance. It has a 3-inch diameter, 300 LB rating, and wafer-style mount. The CF8M body is paired with a CF8M disc and RPTFE seat, while the bare shaft includes an ISO 5211 mounting.

Request a quote

Tags:

API 609 Cat B Butterfly Valve

Double Offset Butterfly Valves

3 Inch Butterfly Valve

Detail Information

DN80 PN25 Stainless Steel High-Performance Butterfly Valve, Double Offset, API 609, 3 Inch, 300 LB, Wafer, CF8M body, CF8M Disc, RPTFE seat, bare shaft with ISO 5211 Mounting

Valve Description:
1862009 Double Offset Butterfly Valve 3TB3WCF8M
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 3 Inch
Nominal class: 300 LB
End Connection: Wafer-RF
Operation: Bare Stem, ISO 5211 Mounting
Body Material: ASTM A351 CF8M
Trim Material: A351 CF8M disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close (million cyclings), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear

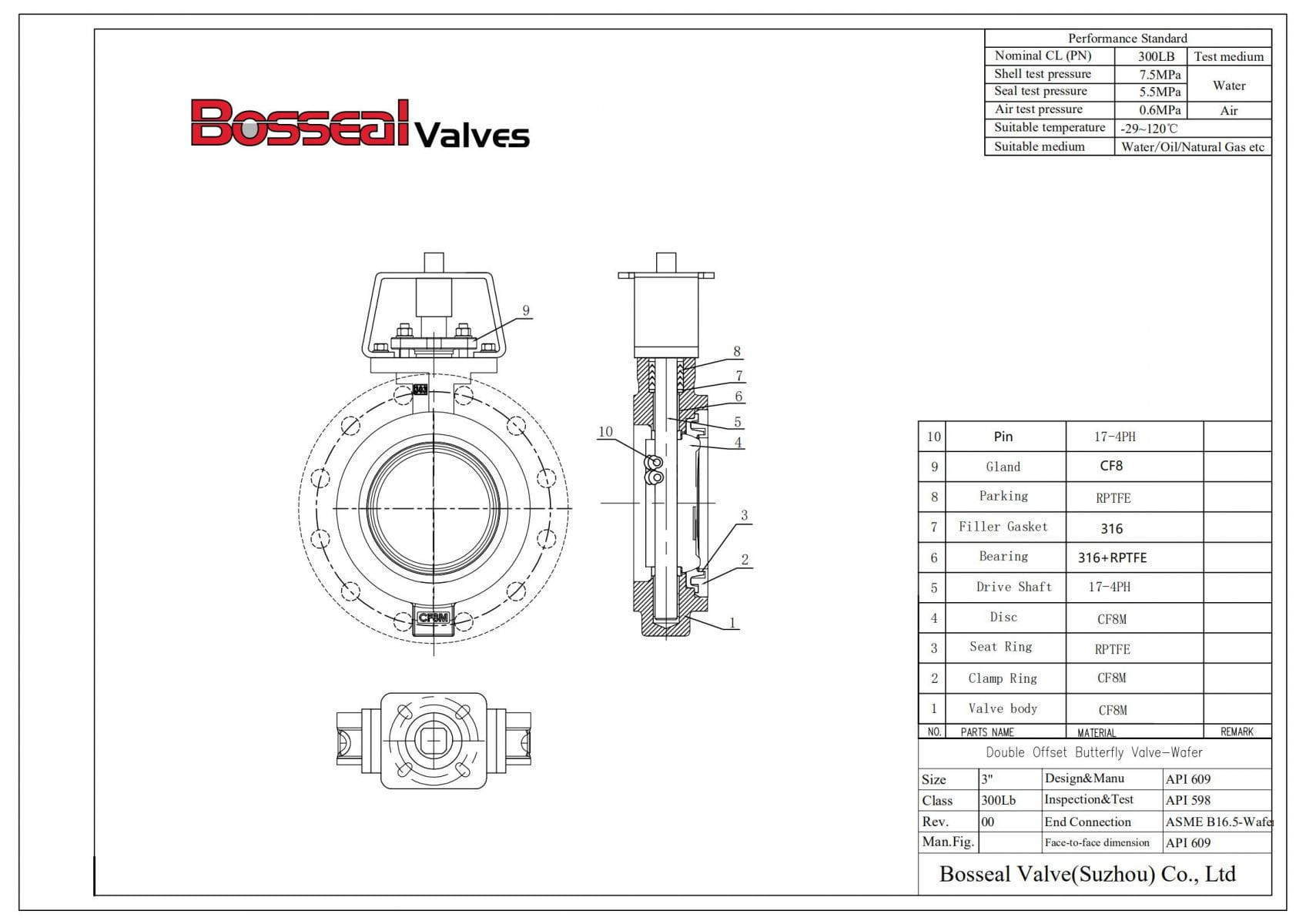

API 609 Cat B Butterfly Valve Tech Drawing

Next: ASTM A995 5A Double Offset Butterfly Valve, API 609, 8 Inch

Previous: Double Offset Butterfly Valve, 10 Inch, 300 LB, WCB, API 609

Similar Products

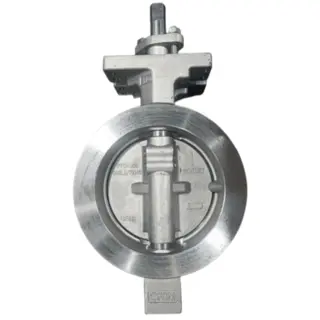

ASTM A351 CF8M Double Offset Butterfly Valve, 8 Inch, 300 LB

High Performance Wafer Butterfly Valve, API 609, CF8M, 10 IN, 300 LB

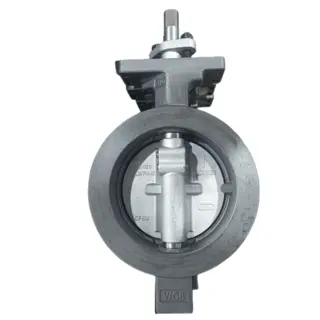

API 609 Double Offset Butterfly Valve, 6 Inch, 300 LB, WCB

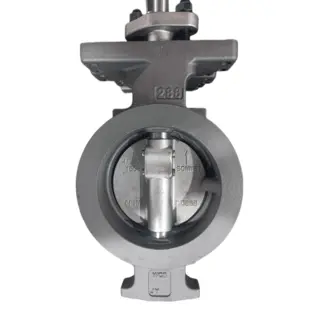

API 609 Double Offset Butterfly Valve, 4 IN, 300 LB, WCB
