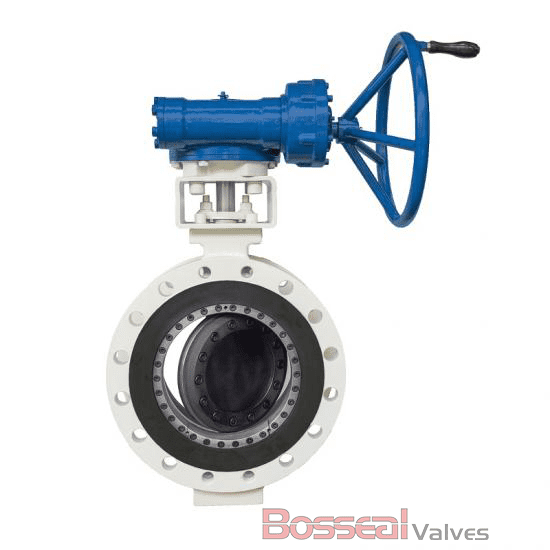

API 609 Cat B Butterfly Valve, ASTM A890 4A, 42 IN, 300 LB

Key Specifications / Features

Model no. : 1862157

We are a factory in China producing high-performance double-flanged butterfly valves made from ASTM A890 4A duplex stainless steel. Our 42-inch (DN1050) double eccentric butterfly valves are designed to meet EN 593 and API 609 Category B standards, ensuring reliable and efficient operation. Rated at 300 LB, these valves feature a 17-4PH stem for superior strength and corrosion resistance, making them ideal for demanding industrial applications. Built for durability and precision, our valves provide long-lasting service in various environments. We are dedicated to delivering top-quality solutions as a trusted manufacturer.

Detail Information

EN 593 Butterfly Valve, API 609, Double Eccentric, 42 Inch/DN1050, 300 LB, Double Flanged End.

Valve Description

1862157 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 42 Inch, DN1050
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A890 4A, Titanium, ASTM A351 CF8M, ASTM A351 CF8, ASTM A216 WCB, ASTM A890 5A, ASTM B148 C95800.
Seat: RPTFE, PPL
Structure: Double Offset, Double Eccentric
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
