API 609 Cat B ASTM A351 CF8M Butterfly Valves, 150 LB, 24 IN

Key Specifications / Features

Model no. : 1862381

We specialize in manufacturing premium double-offset butterfly valves built to API 609 Category B standards. Our 24-inch valves are made from durable ASTM A351 CF8M stainless steel, featuring a Monel K500 stem and a soft RPTFE seat for dependable sealing. With a Class 150 LB rating and flanged ends, these valves are perfect for demanding industrial applications. The double offset design provides smooth, efficient operation, extended service life, and increased durability, making them an ideal choice for isolation and flow control in challenging environments.

Detail Information

Soft Seated Butterfly Valves, API 609 Category B, 24 Inch, 150 LB, Double Offset.

Valve Description

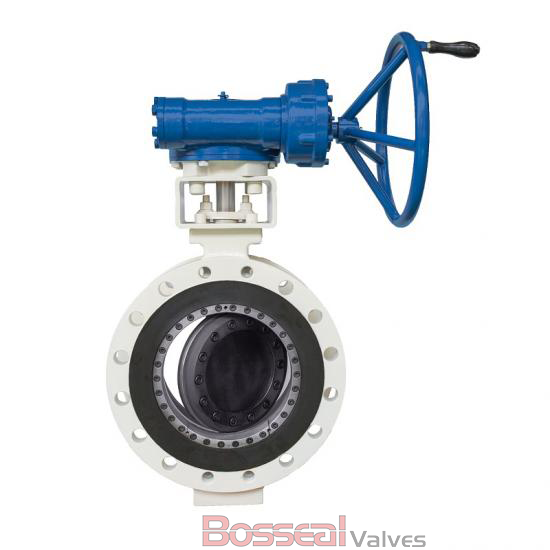

1862381 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 24 Inch, DN600
Nominal Class: Class 150 LB, PN16
Seat Type: Soft Seat
Operation: Gear
Seat: RPTFE, PPL
End Connection: Double Flanged
Body Material: ASTM A351 CF8M, ASTM A890 5A, ASTM A216 WCB, Titanium Alloy, ASTM B148 C95800, ASTM A890 4A, ASTM A351 CF8.
Face to Face: API 609, EN 593
Structure: Double Offset, Double Eccentric
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium.

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium Alloy.
Normal Diameter: 1/2 - 48 Inches (DN15-DN1200)
Pressure Range: Class 150, 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Seat Type: PTFE, RPTFE, PPL(for higher temperature), RPTF
