API 609 Category B

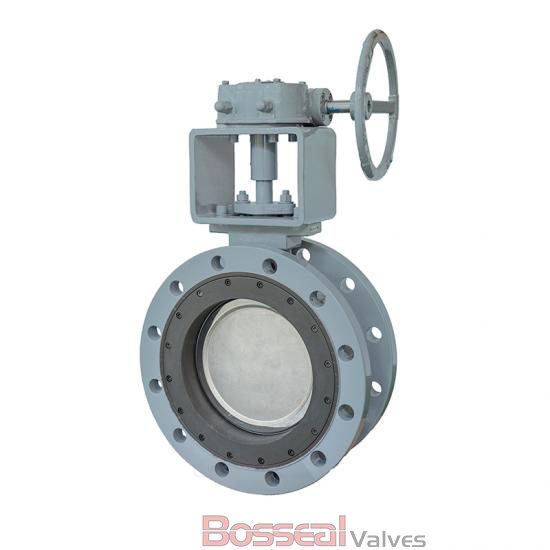

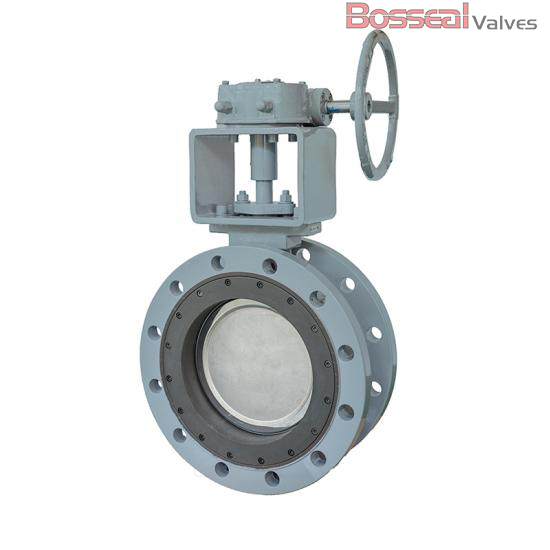

Butterfly Valve, Flanged End, 20 Inch/DN500, 150 LB, Double Eccentric.
Valve Description
| 1862380 High-Performance Butterfly Valve |
| Design Standard: |
API 609 Category B, EN 593 |
| Nominal Size: |
20 Inch, DN500 |
| Nominal Class: |
Class 150 LB, PN16 |
| Structure: |
Double Offset, Double Eccentric |
| Body Material: |
ASTM A351 CF8, ASTM A890 4A, Titanium, ASTM A351 CF8M, ASTM A216 WCB, ASTM B148 C95800, ASTM A890 5A. |
| Seat Type: |
Soft Seat |
| Face to Face: |
API 609, EN 593 |
| Seat: |
RPTFE, PPL |
| End Connection: |
Double Flanged |
| Operation: |
Gear |
| Test and Inspection: |
API 598, API 609 |
| Trim Material: |
ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
| Key Features: |
Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available. |
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 IN - 48 IN (DN15 - DN1200)
Pressure Range: CL 150 - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe Design.
Overview of Double Eccentric Butterfly Valve
The double eccentric butterfly valve stands out for its cost and space efficiency, offering a broader size range compared to other valve types. Its design ensures faster operation with minimal wear between the disc and seat, leading to a longer service life and reduced total cost of ownership. With two offsets, the valve provides enhanced durability, lower torque, and is ideal for frequent use. Bosseal’s high-performance butterfly valves have passed a million-cycle test, ensuring reliable, long-lasting performance in even the most demanding applications.
