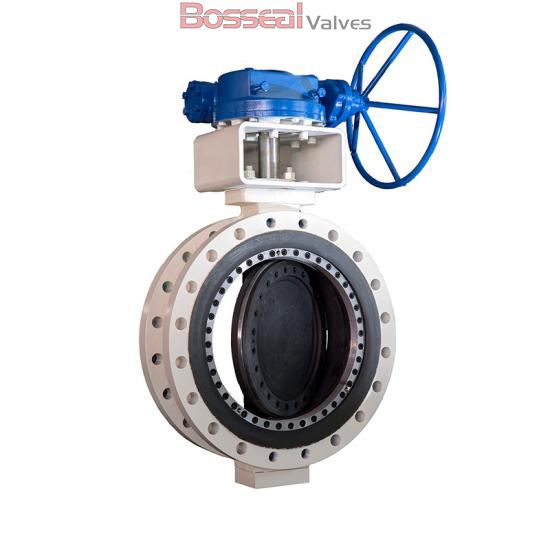

EN 593 Double Eccentric
Butterfly Valve, 6 Inch/DN150, 150 LB, Double Offset.
Valve Description
A double offset butterfly valve is ideal for pipeline isolation and regulation, particularly where frequent open/close operations are needed. Bosseal valves offer several advantages: zero leakage, low torque, long working life, and low emissions. Additionally, they provide bi-directional sealing and are fire-safe, making them highly reliable and efficient for demanding applications.
| 1862247 High-Performance Butterfly Valve |
| Structure: |
Double Offset, Double Eccentric |
| Design Standard: |
EN 593, API 609 Category B |
| Nominal Size: |
6 Inch, DN150 |
| Nominal Class: |
Class 150 LB, PN16 |
| Seat Type: |
Soft Seat |
| Operation: |
Gear |
| Body Material: |
Titanium, ASTM B148 C95800, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A. |
| Seat: |
RPTFE, PPL |
| End Connection: |
Double Flanged |
| Key Features: |
Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available. |
| Face to Face: |
API 609, EN 593 |
| Test and Inspection: |
API 598, API 609 |
| Trim Material: |
ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe Design.
