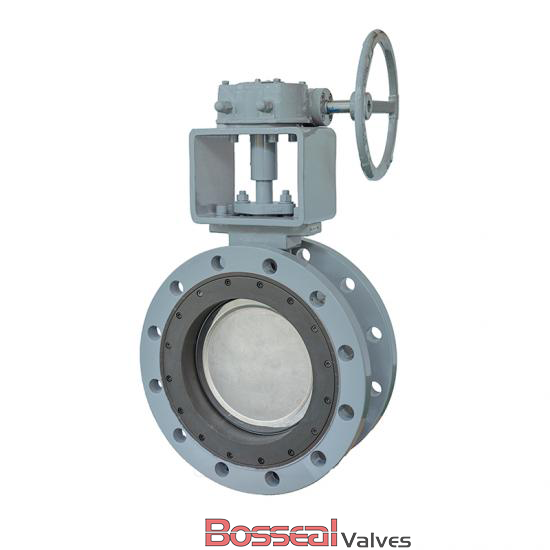

API 609 B Soft Seated Butterfly Valve, A890 5A, CL150, 26 IN

Key Specifications / Features

Model no. : 1862256

As a trusted supplier of API 609 Category B butterfly valves, we provide high-performance solutions designed to EN 593 standards. Our 26-inch double offset valves, made from ASTM A890 5A material, feature a 17-4PH stem, soft RPTFE seat, and flanged ends, with a 150 LB pressure rating. Bosseal valves offer key advantages including zero leakage, low torque operation, and an extended working life, ensuring reliable performance in demanding industrial environments. These valves are ideal for applications requiring durable and efficient flow control.

Detail Information

API 609 High-Performance Butterfly Valve, 26 Inch, CL 150 LB, RPTFE Seat, Double Flanged

Valve Description

1862256 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 26 Inch, DN650
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A890 5A, ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM A351 CF8, ASTM A890 4A, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: Titanium, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium.
Normal Diameter: 1/2 - 48 Inch (DN15-DN1200)
Pressure Range: CL 150 LB - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
