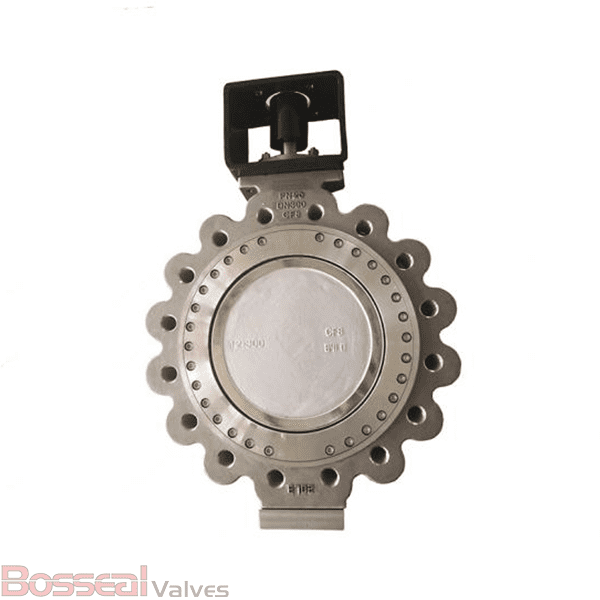

API 609 B Lug Butterfly Valve, A351 CF8, CL 150 LBS, 18 IN

Key Specifications / Features

Model no. : 1862211

Our factory specializes in 18-inch, DN450 double offset wafer butterfly valves, crafted to meet API 609 Category B standards. Constructed from ASTM A351 CF8 stainless steel, these valves feature a soft RPTFE seat for superior sealing performance. Rated for 150 LB, they are equipped with a durable 17-4PH stainless steel stem. Designed for high reliability and efficient operation, these valves are ideal for demanding industrial applications, ensuring long-lasting performance.

Detail Information

API 609 Cat B Butterfly Valves, Double Offset, 18 Inch/DN450, Soft Seated, Gear Operation.

Valve Description

1862211 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 18 Inch, DN450
Nominal Class: 150 LBS, PN16
Seat Type: Soft Seat
Operation: Gear
Structure: Double Offset, Double Eccentric
Body Material: ASTM A351 CF8, ASTM A890 4A, ASTM B148 C95800, Titanium, ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8M.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
