API 609 B Butterfly Valve, ASTM B148 C95800, 150 LB, 28 IN

Name: API 609 B Butterfly Valve, ASTM B148 C95800, 150 LB, 28 IN
SKU: 1862299
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1862299

As a leading manufacturer of RPTFE-seated butterfly valves, we offer a robust 28-inch model with DN700 dimensions. This valve meets EN 593 and API 609 Category B standards and features a durable ASTM B148 C95800 body. Rated at 150 LB, it includes a Monel K500 stem and a double-offset design for enhanced performance and longevity. Built for reliability in demanding applications, our valve ensures superior sealing and operational efficiency.

Request a quote

Tags:

ASTM B148 C95800 Butterfly Valve

RPTFE Seated Butterfly Valve

28 Inch Butterfly Valve

Detail Information

High-Performance Butterfly Valve, 28 Inch/DN700, 150 LB, Double Offset, Gear Operation.

Valve Description

1862299 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 28 Inch, DN700
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM B148 C95800, ASTM A890 4A, Titanium, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM A216 WCB.
Seat: RPTFE, PPL
End Connection: Wafer
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150-300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available

Next: ASTM A216 WCB Butterfly Valve, CL 150, 30 IN, Soft Seated

Previous: Double Offset Butterfly Valve, EN 593, CL150, 26 IN, A890 4A

Similar Products

ASTM A216 WCB Butterfly Valve, RPTFE Seat, 28 Inch, 300 LB

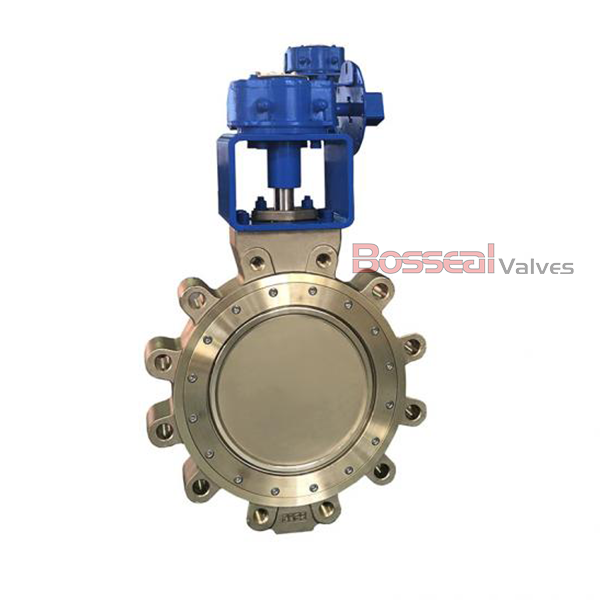

Monel K500 Stem Butterfly Valve, 3 IN, 150 LB, B148 C95800
