Key Specifications / Features
Model no. : BTV-187302011
We are a trusted manufacturer of high-quality aluminum bronze butterfly valves engineered to meet API 609 Category B and BS EN 593 standards. Crafted with a robust ASTM B148 C95800 body and trim, our valves ensure superior corrosion resistance and durability in harsh environments. Available in 18-inch size and Class 150 LB rating, these valves are offered in wafer, lug, and flanged end connections to suit various installation needs. Ideal for marine, offshore, and industrial applications, our butterfly valves deliver reliable performance and long service life.
Valve Description:

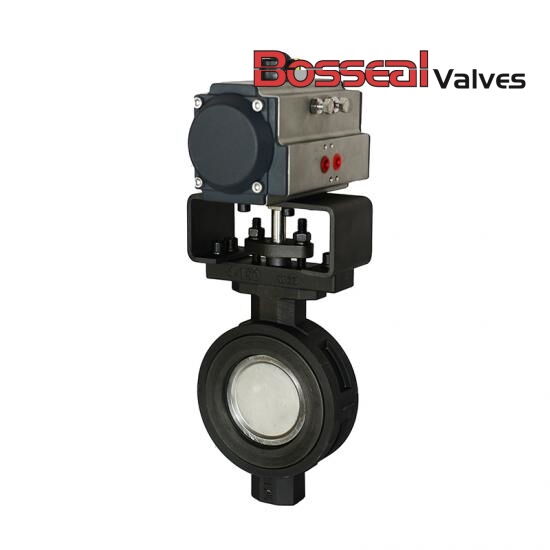

187302011 High Performance Butterfly Valve
Design Standard: API 609 Category B, BS EN 593
Nominal Size: 18 Inch, DN450
Nominal Class: Class 150 LB
Seat Type: Soft Seat
Operation: Lever/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Seat: RPTFE, PPL
Structure: Double Offset, Double Eccentric
Face to Face: API 609, BS EN 593
Test and Inspection: API 598, API 609
End Connection: Wafer/Lug/Flanged
Key Features: Long working life for frequent operation(million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available, Aluminium bronze for sea water service
Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer/Lug/Flanged
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
