Key Specifications / Features

Model no. : 0.75BB8NA105N

Introducing our high-quality 3/4 inch Floating Ball Valve with a maximum pressure rating of 800 LB. This valve features NPT threaded ends and complies with ISO 17292 standards. It is constructed with a durable A105 body and boasts a 316 Trim for enhanced performance. The RPTFE seat ensures excellent sealing capabilities. With lever operation, this valve provides reliable control in various applications. Explore our versatile and dependable Floating Ball Valve today.


Detail Information

3/4 inch, 800 LB, Floating Ball Valve, NPT Threaded End, ISO 17292, A105 body with 316 Trim, RPTFE seat and lever operation

Valve Description:

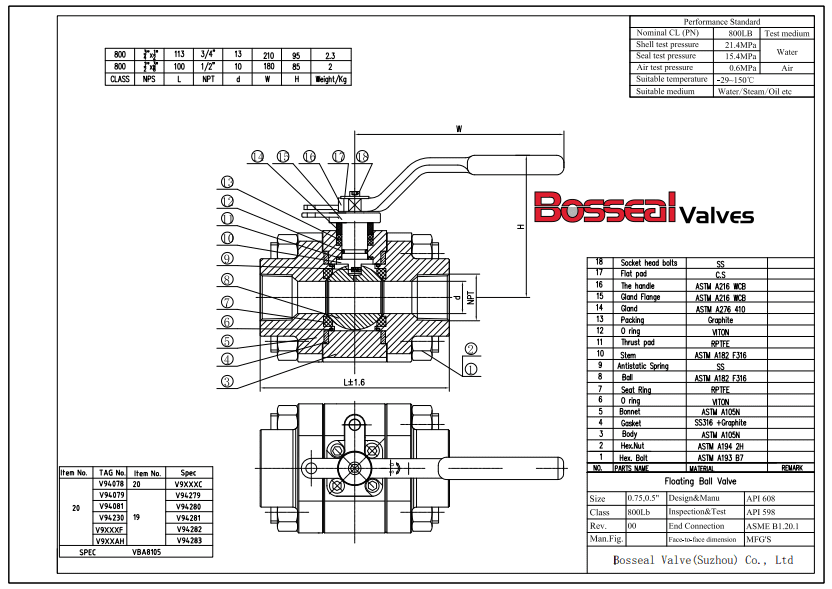

1812009 Floating Ball Valve 0.75BB8NA105N
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 3/4 Inch, DN20
Nominal class: 800 LB
Bore Type: Reduced Bore
End Connection: NPT/BSP
Operation: Lever Lockable
Body Material: ASTM A105
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
