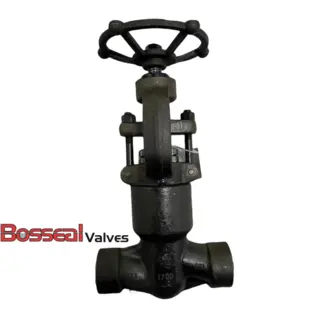

API 602 Pressure Seal Globe Valve, 2 Inch, 1700 LB, A182 F22

Key Specifications / Features

Model no. : 2GLP17SF2205

Browse our selection of API 602 pressure seal globe valves, featuring a 2-inch diameter (DN50) and designed for Class 1700 LB applications. Crafted from ASTM A182 F22 material with NO.5 trim, these valves adhere to ASME B16.34 standards. They are suitable for socket weld (SW) connections and are operated by a handwheel. Explore now for reliable performance in regular bore configurations.


Detail Information

Pressure Seal Forged Globe Valve, ASME B16.34, 2 INCH, 1700 LB, SW, A182 F22 Body, Trim 5, Handwheel

Valve Description:
1852029 API 602 Forged Globe Valve 2GLP17SF2205
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS&Y
Nominal size: 2 Inch
Nominal class: 1700 LB
Bore: Regular Bore
End Connection: Socket Weld
Operation: Handwheel
Body Material: ASTM A182 F22
Trim Material: F6A+STL.6, Trim 5
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid Disc, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy Steel
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: 150-2500 LB
End connection: RF, RTJ
Working temperature: -29℃ - +400℃
Operation: Handwheel
