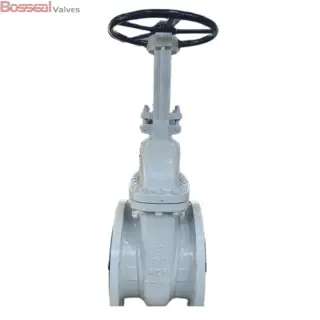

API 600 Wedge Gate Valve, 14 IN, 600 LB, ASTM A352 LCB

Key Specifications / Features

Model no. : 1821093

Our 14-inch wedge gate valves are built to meet API 600 standards and are made from high-quality carbon steel ASTM A352 LCB. Designed for durability and reliable performance, these valves feature a 600 LB pressure rating, flexible wedge, OS&Y construction, and RF flanged connections for easy installation. Additionally, they are equipped with a pressure seal bonnet for enhanced sealing performance in high-pressure applications. With a focus on precision and quality, we ensure our wedge gate valves meet the strictest industry standards for safety and efficiency.

Detail Information

Pressure Seal Bonnet Gate Valve, API 600, ASTM A352 LCB Body, 14 Inch/DN350, Class 600 LB, RF Flanged.

Valve Description

1821093 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM A352 LCB, ASTM A351 CF8, ASTM A216 WCB, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800
Bore Type: Standard Bore(API 600)
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55
Nominal Size: 14 Inch, DN350
Nominal Class: Class 600 LB, PN100
End Connection: RF Flanged
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Valve Types: Wedge Gate(flexible wedge, solid wedge), Slab Gate, Parrel Slide Gate Valve, Knife Gate Valve, Bellow Seal Gate Valve
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Stem Types: Rising stem, Non-rising Stem
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
