API 600 Gate Valve, ASTM A890 4A, 24 IN, 900 LB, OS&Y, BB

Key Specifications / Features

Model no. : 1821118

We offer high-performance solutions designed to meet API 600 standards. Our 24-inch (DN600) valve, crafted from durable ASTM A890 4A duplex stainless steel, is rated for Class 900 LB pressure. It features an OS&Y configuration, a bolted bonnet, and a screwed-in back seat for enhanced reliability and performance in demanding environments. With exceptional corrosion resistance and robust construction, our gate valves are ideal for industrial applications requiring long-lasting durability and safety. As a leading flexible wedge gate valve manufacturer from China, we ensure top-quality products to meet industry needs.

Detail Information

ASTM A890 4A Flexible Wedge Gate Valve, API 600, 26 Inch/DN600, 900 LB, Handwheel/Gear Operation.

Valve Description

1821118 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM A890 4A, ASTM A890 5A, ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800.
Nominal Size: 24 Inch, DN600
Nominal Class: CL 900 LB, PN150
End Connection: RTJ Flanged
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55.
Face to Face: ASME B16.10
Bore Type: Standard Bore(API 600)
Test and Inspection: API 598

Key Features

1. OS&Y (Outside Screw and Yoke) design.
2. Screwed-in back seat for added security.
3. Rising stem with the non-rising handwheel.
4. Flexible wedge for improved sealing.
5. Low emission design for environmental compliance.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 - 64 Inch (DN50 - DN1600)
Pressure Range: 150 - 2500 LB
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
Seat Types: Metal Seat Gate Valve(hard faced), Resilient Gate Valve(rubber seat) Bonnet


Nickname*:
E-mail*:
Rate*:
Comments*:

Next: ASTM B62 C83600 Bronze Gate Valve, MSS SP-80, 1/4 IN, 125 LB

Previous: ASTM A216 WCB Wedge Gate Valve, API 600, 24 Inch, 150 LB, RF

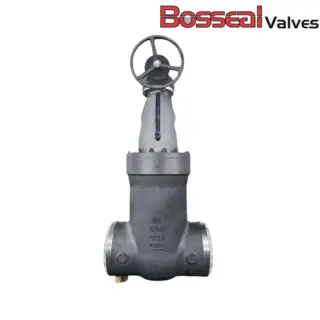

Similar Products
